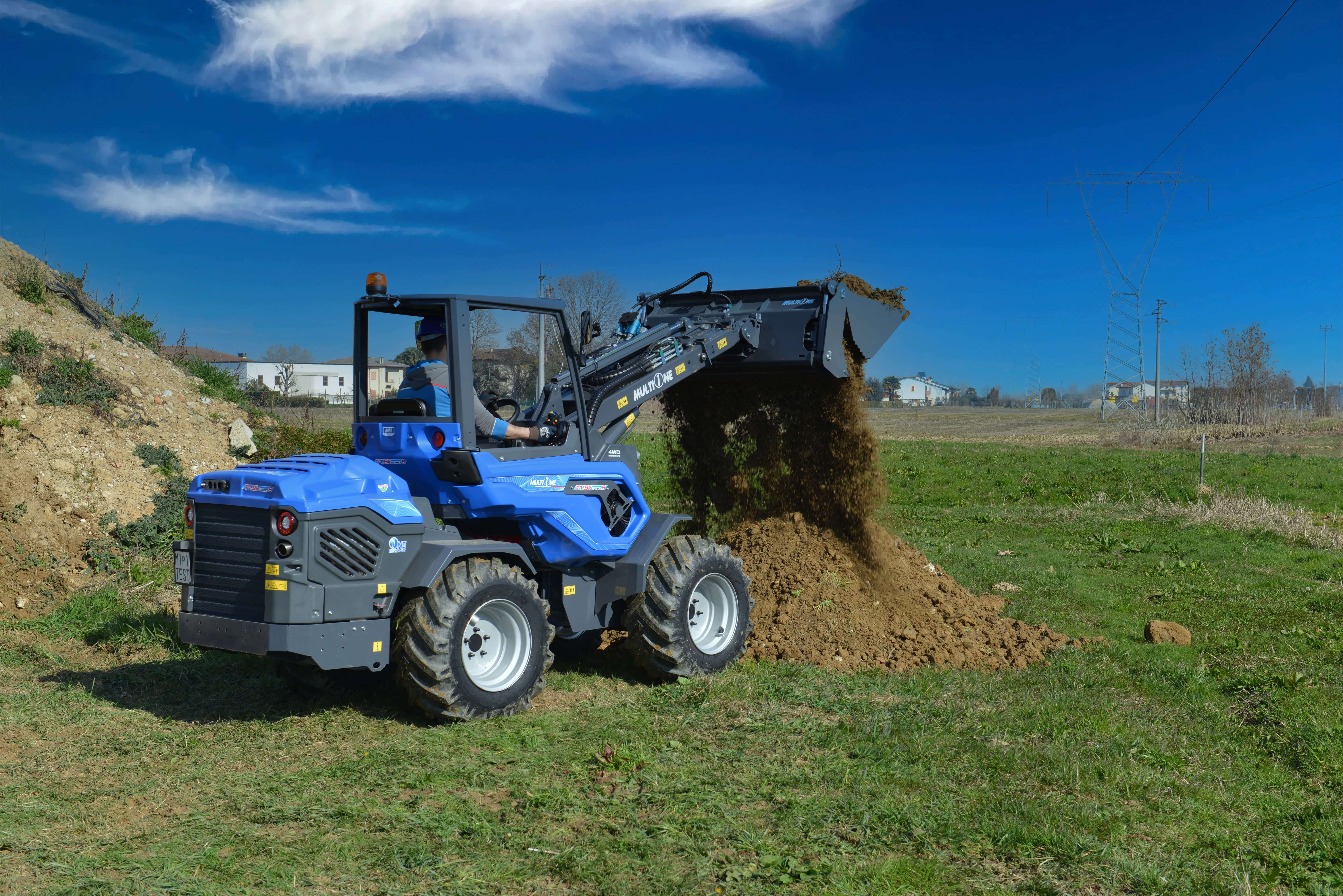

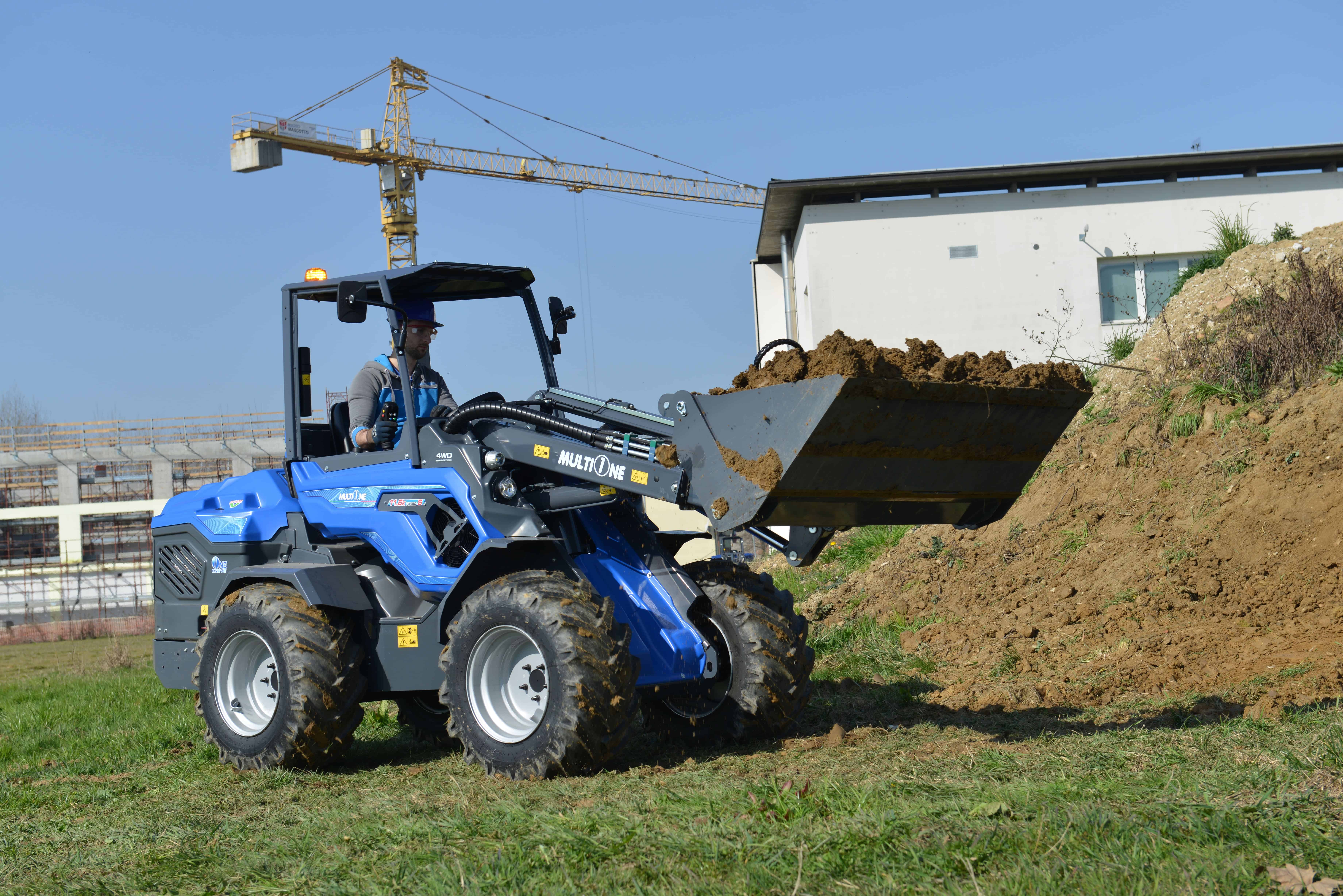

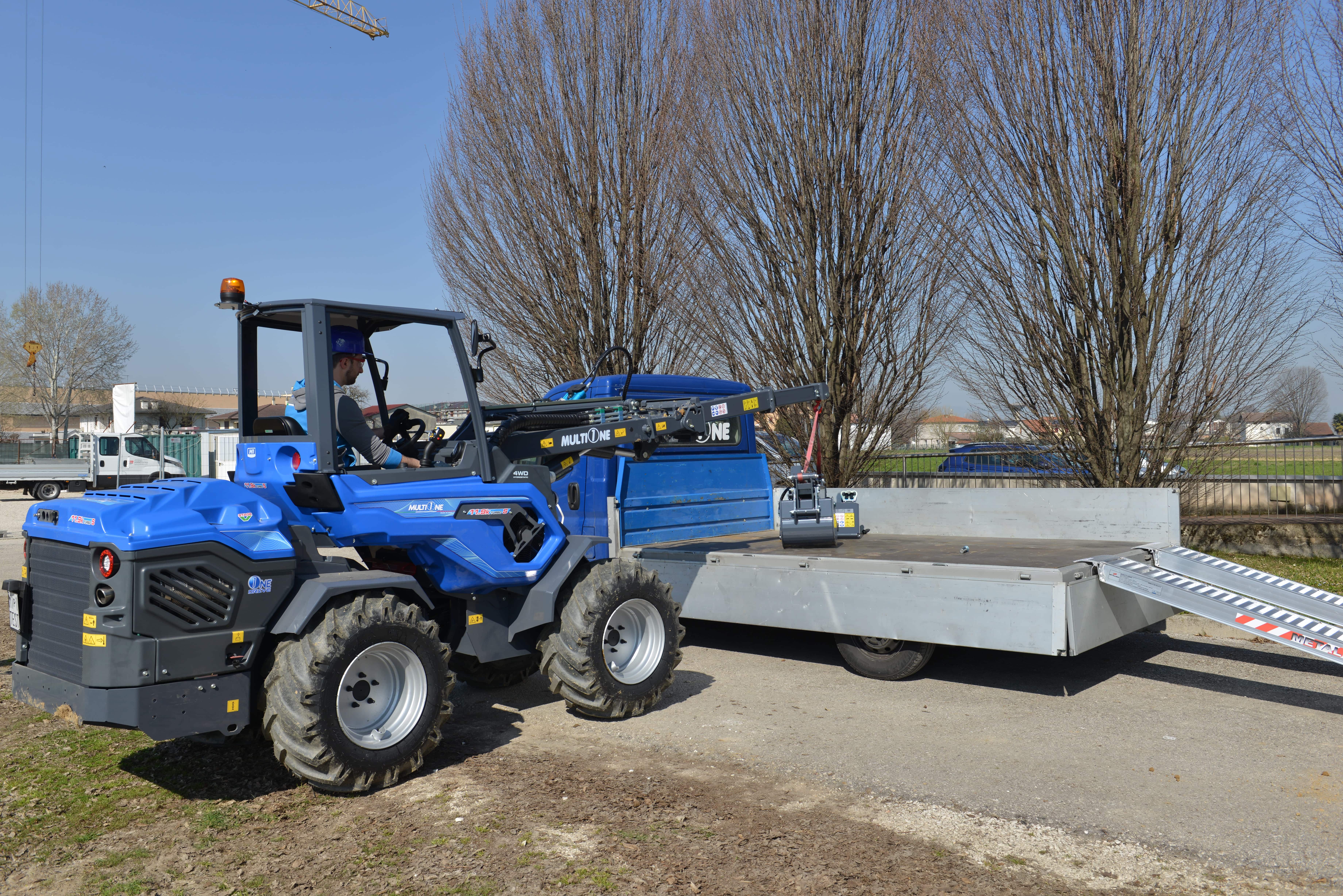

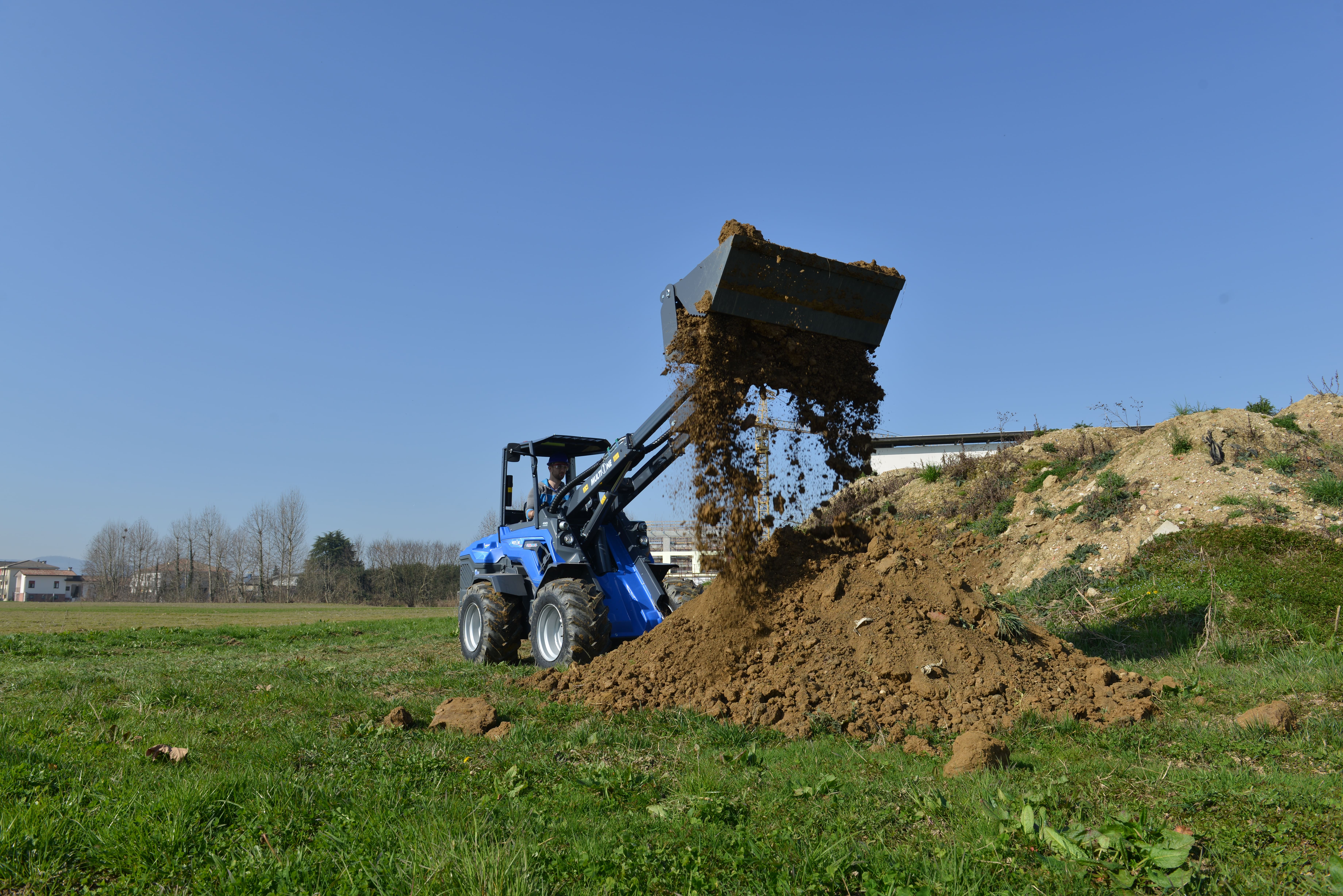

11 Series
The MultiOne flagship. The market benchmark.
The new TurboS models mark a significant evolution within the 11 Series, introducing major enhancements that elevate performance and productivity on any job site. Thanks to a redesigned hydrostatic pump and upgraded wheel motors, the TurboS models deliver substantially higher torque and power, ensuring smoother operation even under the most challenging working conditions.
Despite these improvements, the core strengths of the 11 Series remain unchanged. The machines retain their exceptional lifting height, impressive hydraulic flow, and the robust 75 HP engine featured on the 11.9 model.
These key characteristics—together with the new powertrain enhancements—reinforce the machine’s status as the undisputed queen of the sector.
Why choose the MultiOne
11 Series TurboS
The MultiOne 11 Series is the ideal choice for professionals who:
- Need outstanding lifting performance — The 11 Series can effortlessly lift 2.6 ton just off the ground at reach a height of 3.7 meters, making it perfect for heavy‑duty operations that require both power and stability.
- Rely on high‑performance attachments — With a hydraulic flow capable of delivering 95 l/min, the machine ensures top‑tier efficiency when working with demanding attachments and professional‑grade tools.
- Want the best machine on the market — Engineered for maximum versatility, power, and reliability, the 11 Series stands as the benchmark of its category—simply the best solution available for those who refuse to compromise.
Features
Aci
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.
2 Speed
Electro-hydraulic speed regulation
Cruise control
The cruise control is a great feature of OneDrive, as all attachments that require constant speed are now very easy to run: just set the working speed and the OneDrive will do the job for you.
Constant speed will give perfect results on the job site with a variety of attachments. The Cruise Control is activated by the joystick.
DBS (dynamic block system)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.
Unbreakable body panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil
Rops-fops level i
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.
Hydraulic multiconnection
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Radial piston wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.
2 front working lights
2 front working light to illuminate the working area
Lcd grapic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Hi flow
Additional pump that increases the outlets oil flow.
Electronic throttle control
ETC – Electronic Throttle Control
One-drive
The Multione OneDrive increases the transmission performance while reducing heat and fuel consumption.
The system provides a smooth but rock solid control on the foot pedals and reduces the fatigue during long operation hours.
It allows a wider speed range control, and the improved efficiency allows to reach very high travel speed and increases the components lifetime.
Multi-disk parking brake
Multiple Disc Brakes spring loaded and hydraulically released.
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
Radial piston wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.
Multi functions joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
Technical data
| 11.5 Y STAGE IIIA | 11.6 K TurboS | 11.9 K TurboS | |
|---|---|---|---|
| Lifting Capacity Straight, Max (*) | 2.540 kg | 2.540 kg | 2.620 kg |
| Power | 50 hp | 57 hp | 75 hp |
| Speed | 12-25 km/h | 15-30 km/h | 15-30 km/h |
| Flow rate | 80 l/min | 83 l/min | 95 l/min |
| Lift Height | 3,7 m | 3,7 m | 3,7 m |
| Pushing Force (c) | 2.650 kgf | 3.250 kgf | 3.250 kgf |
| Weight | 2.280 kg | 2.320 kg | 2.400 kg |
(*) It’s the maximum load that can be lifted just off the ground when the machine is straight and with rear weights. Weight of attachment is included.
Standard equipment
ACI
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.
Cruise Control
The cruise control is a great feature of OneDrive, as all attachments that require constant speed are now very easy to run: just set the working speed and the OneDrive will do the job for you.
Constant speed will give perfect results on the job site with a variety of attachments. The Cruise Control is activated by the joystick.
DBS (Dynamic Block System)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Electronic Throttle Control
ETC – Electronic Throttle Control
Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.
HI-Flow
Additional pump that increases the outlets oil flow.
Hydraulic multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil
LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Multi-disk parking brake
Multiple Disc Brakes spring loaded and hydraulically released.
Multi function joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
One Drive
OneDrive is a brand new transmission system with a performance output over 30% higher than standard circuit. The DBS and Torque Divider and the brand new MultiOne Cruise Control are integrated.
Radial Piston Wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.
ROPS-FOPS Level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.

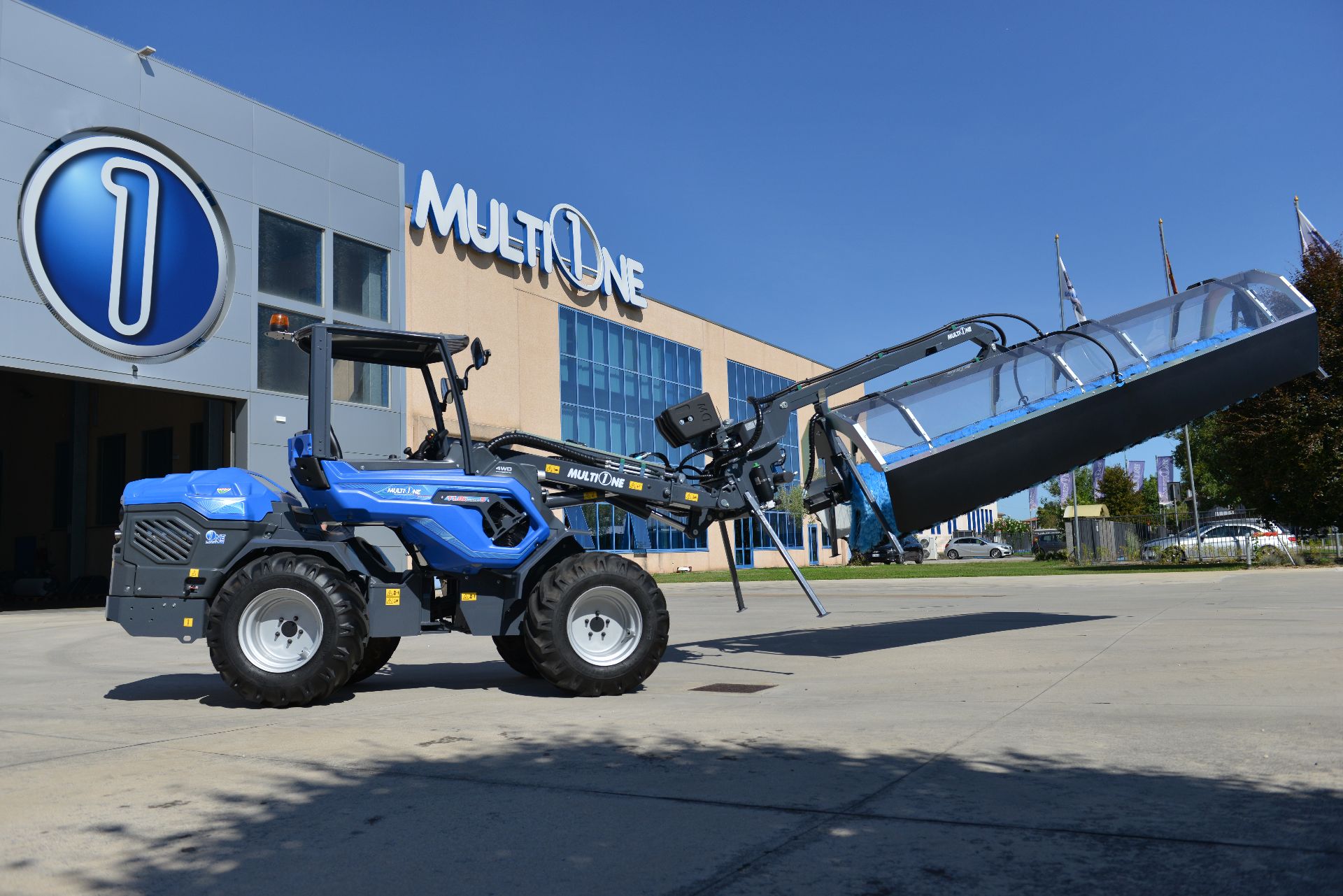

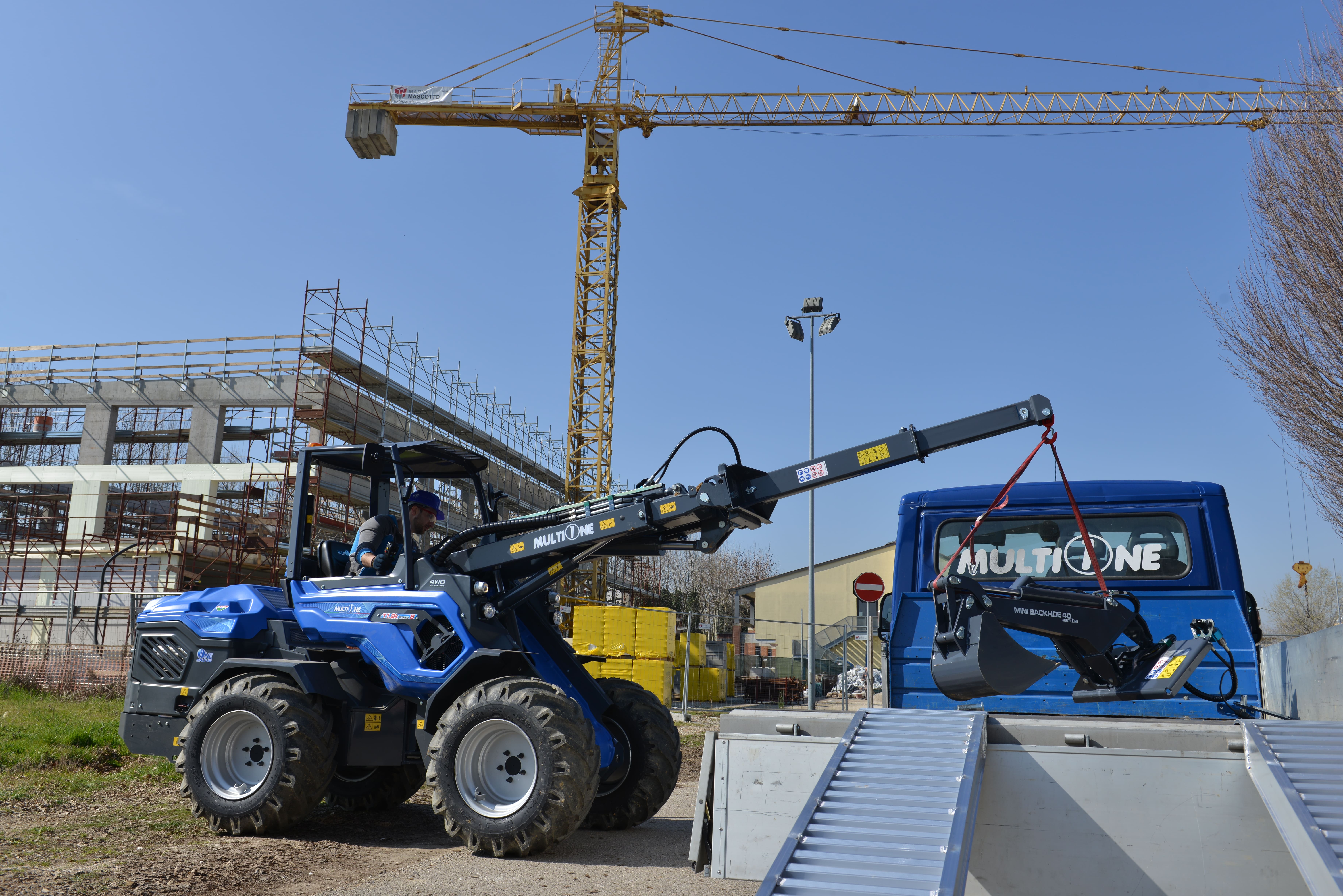

Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.
Unbreakable Body Panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.
2 front working light
2 front working light to illuminate the working area
2 speed
Electro-hydraulic speed regulation.
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
Attachments
Customizations
Air conditioning for cabin
Air conditioning system from the roof of the cabin, with adjustable fan speed and electronic temperature control. Wide air outlets create a very comfortable ventilation system inside the cabin.
Attachment coupling plate for rear mounting
It is used to assemble attachments on the rear of the machine.
Aux hydraulic outlets
Additional hydraulic outlets (front and/or rear).
Automatic locking plate
On the automatic attachment plate the locking pins move hydraulically and are operated from cockpit.
This way the driver can stay on the seat when coupling and disconnecting non-hydraulic attachments.
Backup warning beeper
It help keep everyone safer during MultiOne machine operation.
Beacon light
Beacon light ensures more visibility and safety.
Cruise Control
The cruise control is a great feature of OneDrive, as all attachments that require constant speed are now very easy to run: just set the working speed and the OneDrive will do the job for you.
Constant speed will give perfect results on the job site with a variety of attachments. The Cruise Control is activated by the joystick.
Driver area cover
Covers the machine interior, protects against rain, snow, etc.
Engine block heater
It is an ideal device for cold temperatures.
The system keeps the engine at an optimal temperature for easy starting with very cold climates.
Flat Face coupling kit
Adaptor to be put on the multiconnectors, in order to connect standard flat face connections.
Floating boom valve
It allows the mounted attachments to follow the contours of the land perfectly. Ideal for applications in agriculture and in the care of the green areas.
Fully enclosed cab (glass)
This is the best insulation system for the driver to protect him from cold, wind, rain, and snow.
Easy access thanks to the large door and the compass glass opening.
Heating system
Three-way heating with adjustable air flows and temperature.
LED road lights
LED road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
Left protection bar for operator
A side-protection bar that has been certified and awarded as a techincal safety innovating system. It is placed on the left side of the machine to protect the operator from falling out of the vehicle. It can be locked and unlocked very quickly thanks to a special mechanism.
Multiconnector to quick coupling 3 lines adapter
Adaptor for machines, in order to connect standard flat face single lines connections. Suggested for attachments equipped with hydraulic cylinders, not with hydraulic motors. The adaptor has 3 lines to fulfill the connections with any kind of attachments.
Rear bull bar
Rear bull bar.
Rear hydraulic outlets
They are used to mount on the rear side attachments that need hydraulic supply. The rear outlets are controlled by the control panel.
Rear side weights
Rear side weights are used to increase the lifting capacity of the machine. It’s possibile to mount them also with other rear weights mounted.
Two kit (80 kg per side, 160 kg total) can be mounted, screw is required.
Rear weights
Backweights are used to increase the lifting capacity of the machine. They are to be mounted on the rear of the machine.
Rubber Tracks
Track drive grant maximum stability & traction, with minimal ground damage and low ground bearing pressure. The large contact area under the tracks reduces pressure, minimises ground damage and avoids sinking into soft soil & creating ruts.
Smart Cabin
The most competitive solution for the operator who wants to improve working conditions thanks to a light cabin which limits the discomfort created by weathering.
Snow chains
MultiOne snow chains improve traction on snow.
Tie down bracket on wheel hub
The tie down brackets mounted on wheel hub makes easier to tie down the machine on a trailer.
Tractor Tires
Trailer coupling
Rear tow hook with double connection: with tow ball (car type) or tow pin (agricultural type).
Turf tires
Warning and safety lights for road travel (w/mirrors)
Front and rear lights, brake lights, turning lights, beacon, mirrors. In certain countries this equipment enables road traffic registration – requirements vary in different countries.
Wheel spacer
Spacers are used to make the machine wider and increase its stability.
12V rear electric socket
12 Volt rear electric socket to connect the attachments.
3 aux working led lights
3 auxiliary working LED lights for more visibility.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
