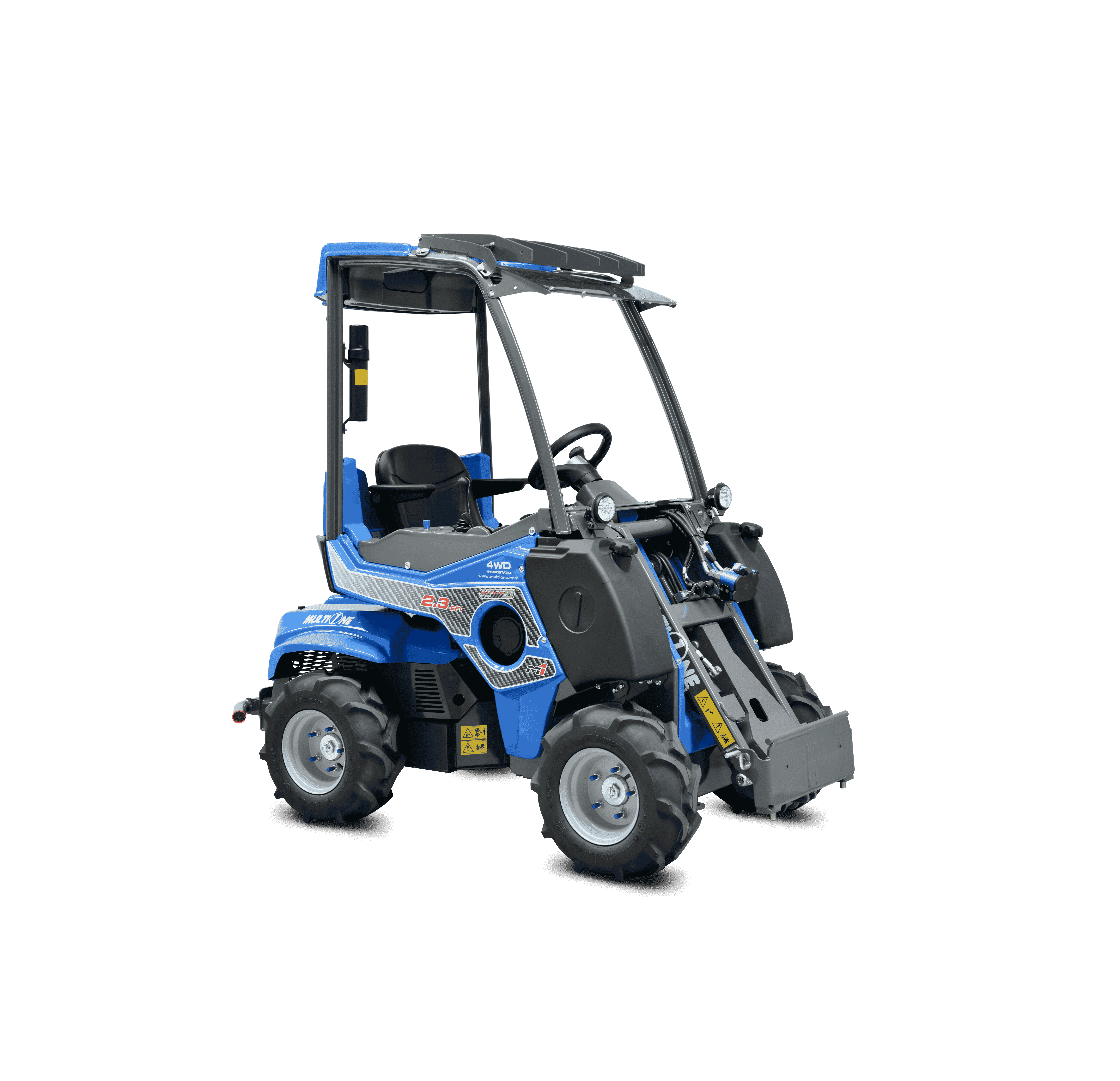

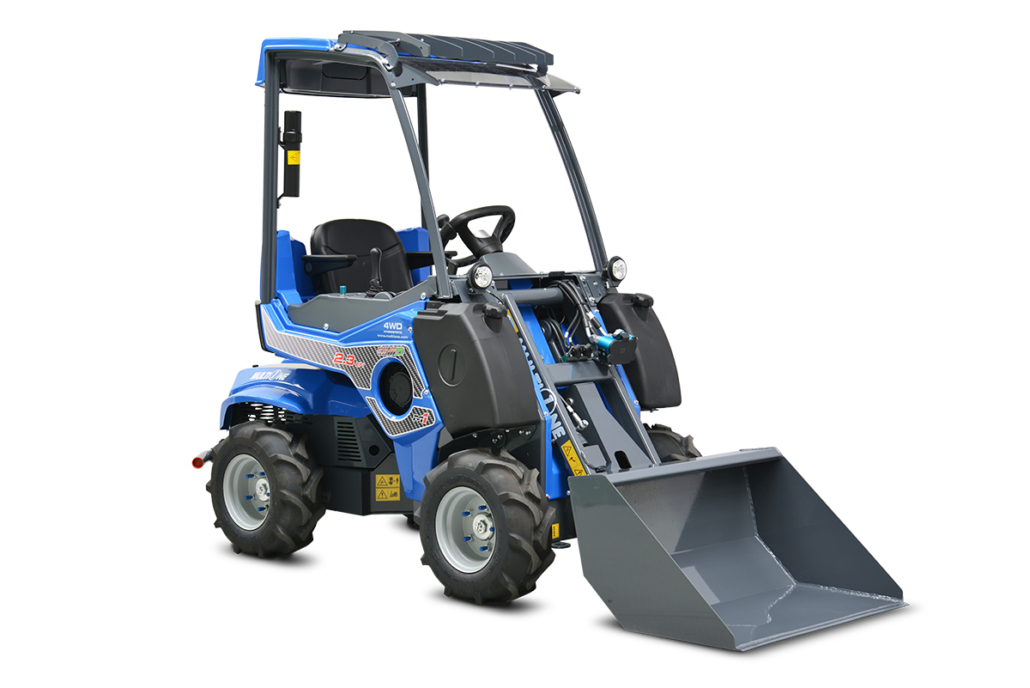

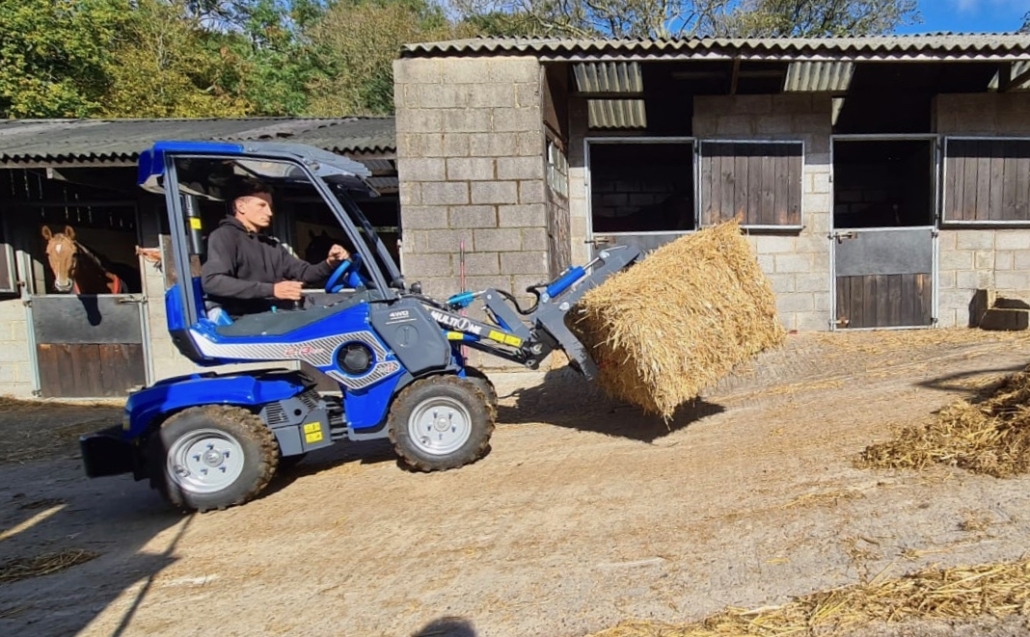

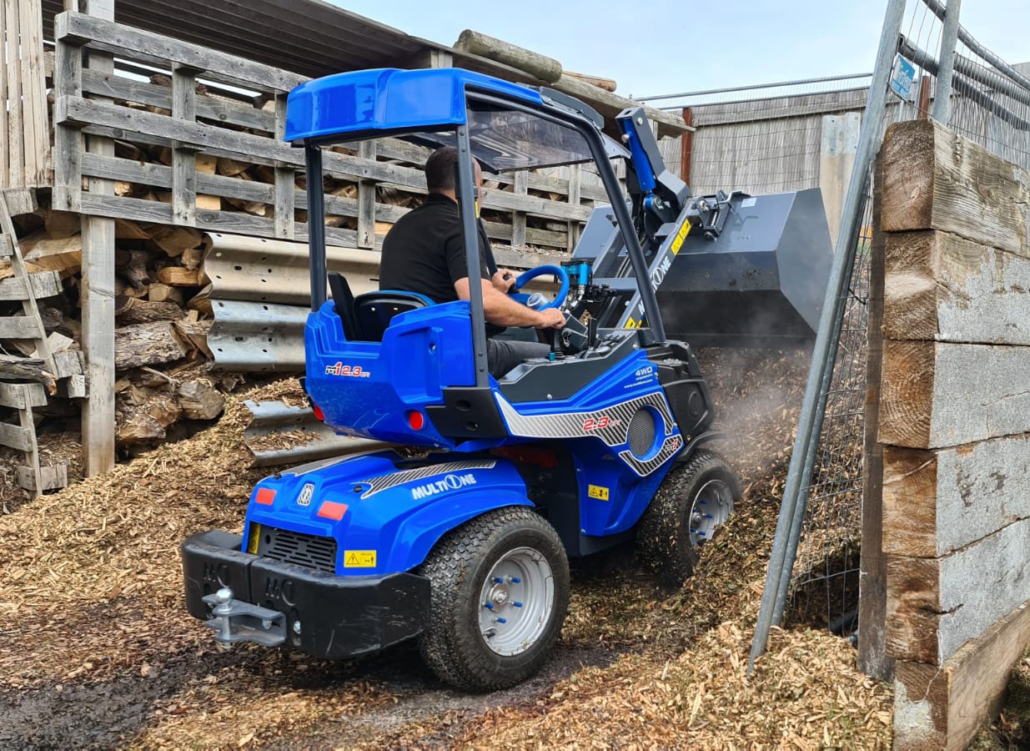

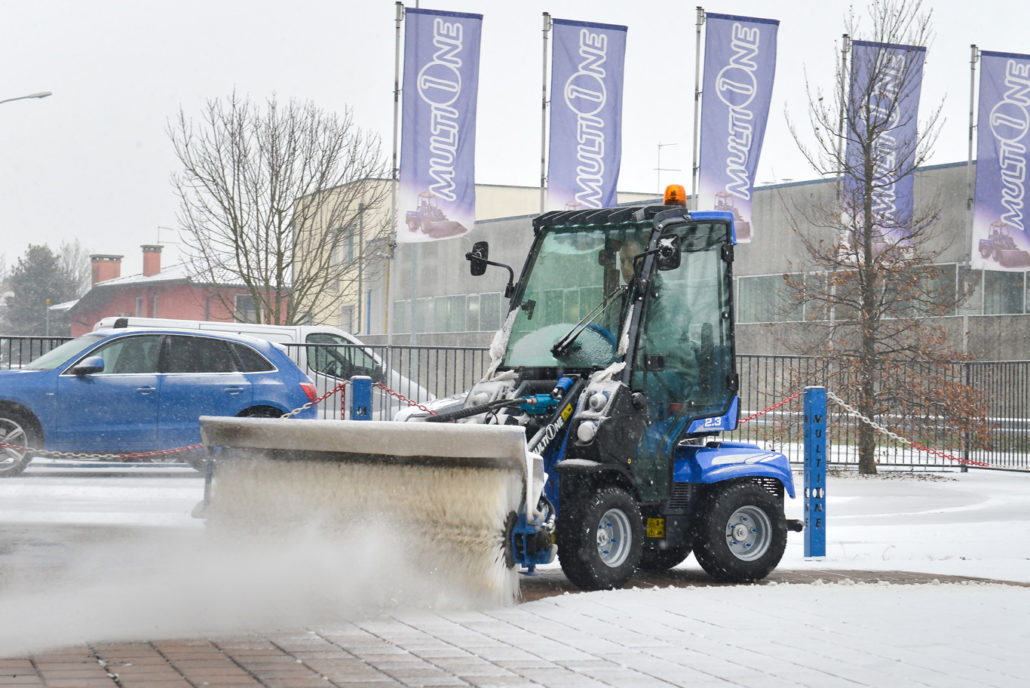

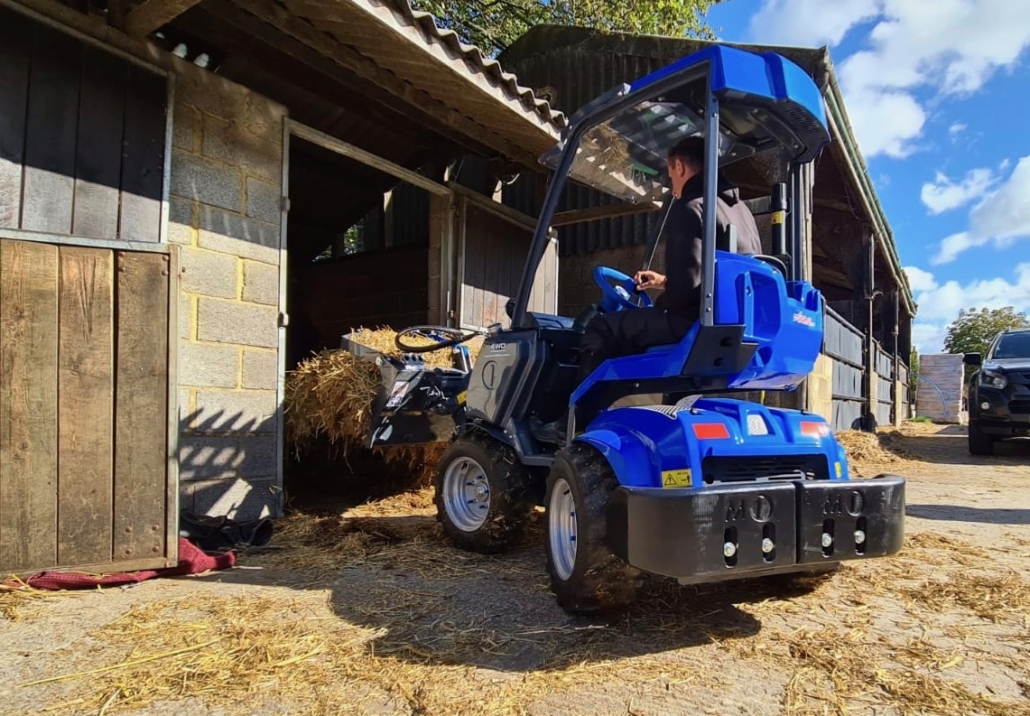

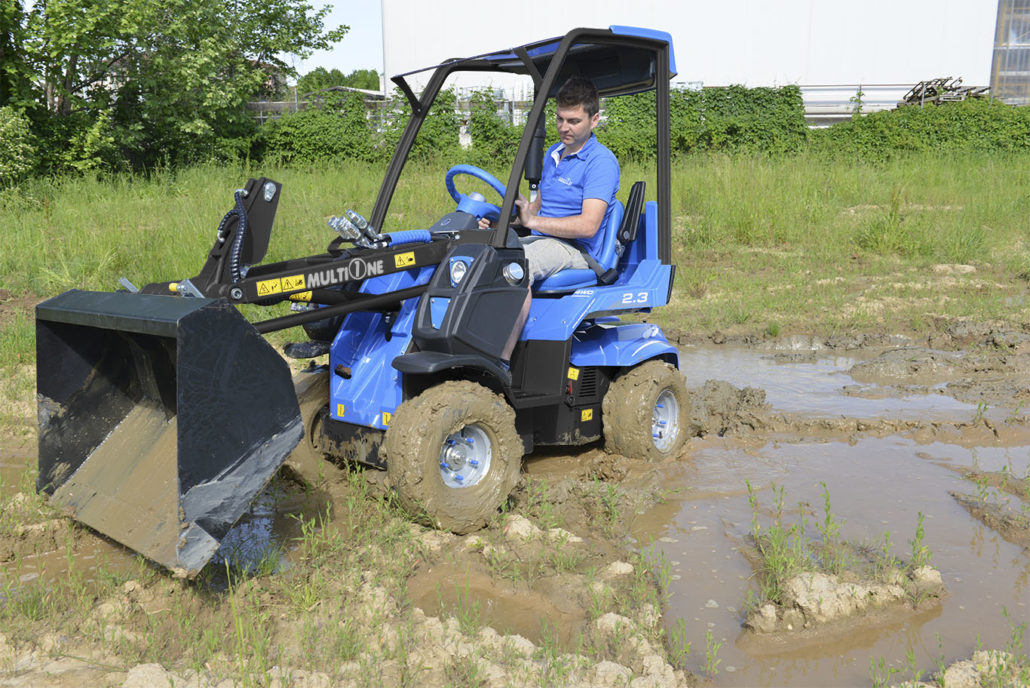

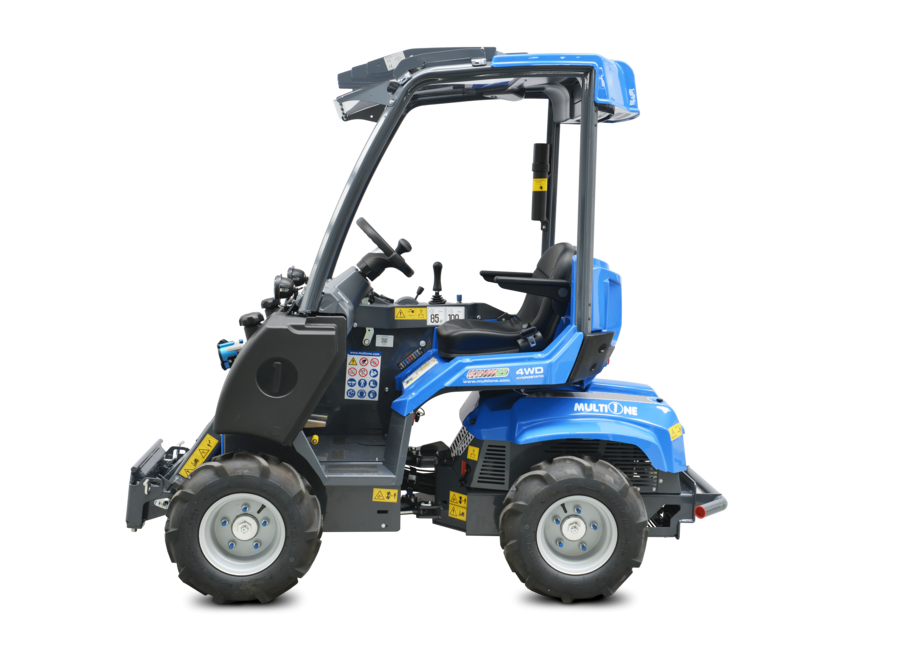

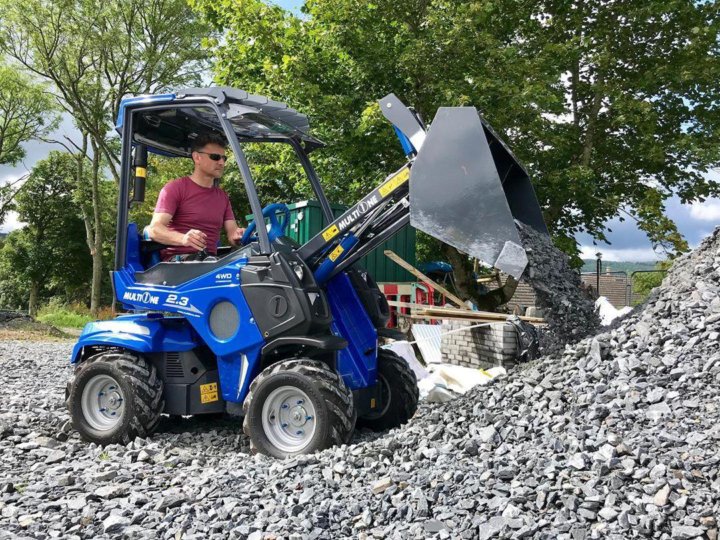

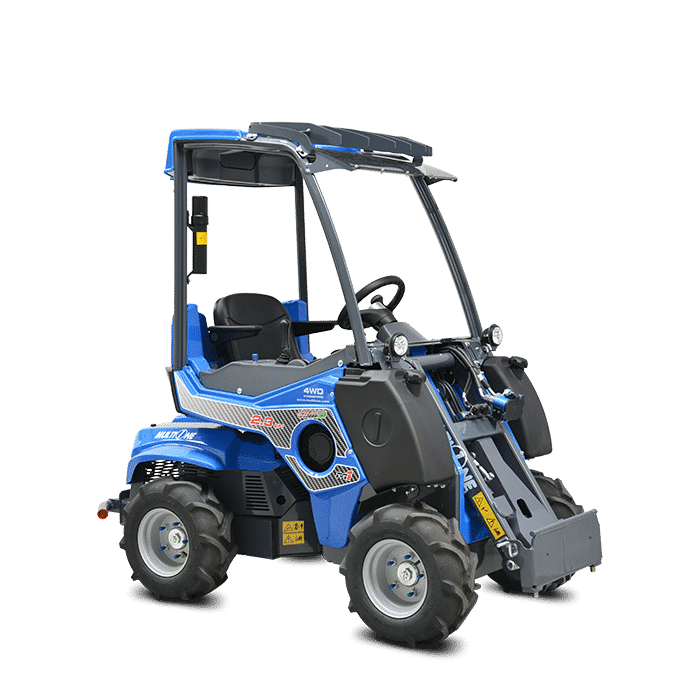

2 series
The smallest and most economical articulated series of MultiOne.
This machine provides high performance on any surface.
The articulation system allows the operator to drive the machine with total comfort, even in narrow spaces.
The harmony of a compact performance and an innovative design makes the 2 Series the most competitive machines of their category, the best solution for DIY activity.
2 Series Plus:
- Articulated frame
- New Kohler engine , 2cyl. petrol with electronic fuel injection (EFI)
- Compact dimensions
- Quick starting
Features
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
Dbs (dynamic block system)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.
4-functions joystick
4-functions joystick allows an easy control of the machine.

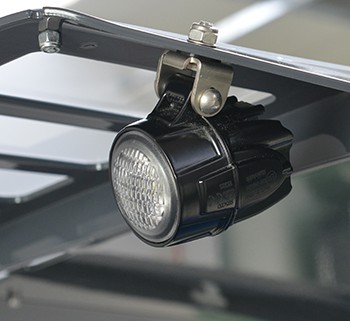

2 front working lights
2 front working lights to illuminate the working area
Self-levelling H frame boom
The Self-levelling H-frame boom assures an excellent front visibility at any time, even while moving and lifting. Thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Hydraulic Multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil
Mechanical parking brake
Mechanical parking brake
Rops fops level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Technical data

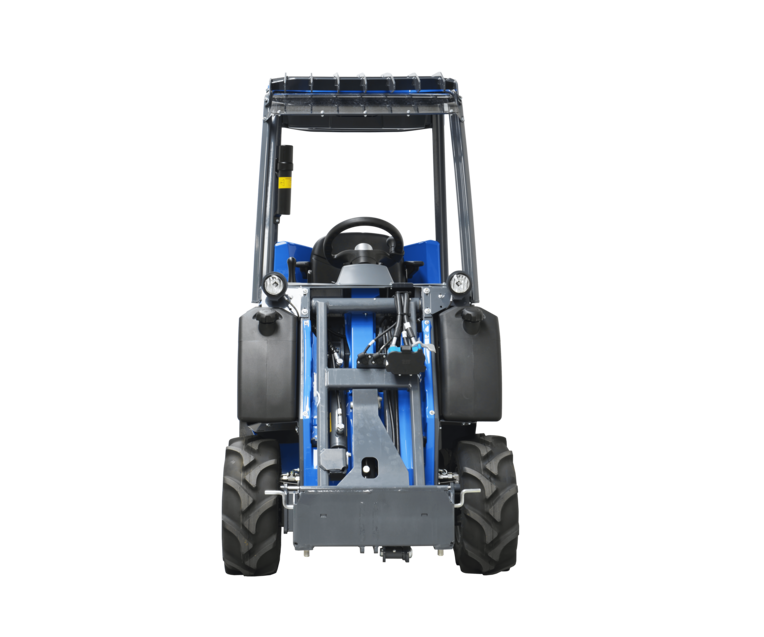

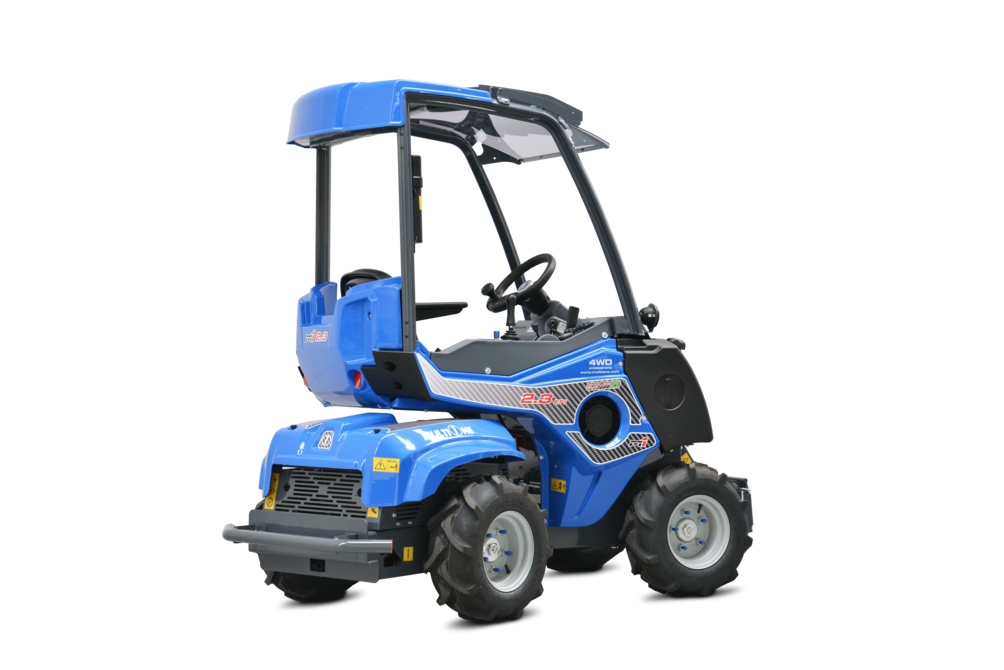

| 2.3 EFI | |
|---|---|
| Lifting Capacity Straight, Max (*) | 560 kg |
| Power | 26,5 hp |
| Speed | 15 km/h |
| Flow rate | 42 l/min |
| Lift Height | 1,6 m |
| Pushing Force (c) | 770 kgf |
| Weight | 710 kg |
(*) It’s the maximum load that can be lifted just off the ground when the machine is straight, with backweights and on firm, level ground. Weight of attachment included, the max lifting capacity is the value indicated minus the weight of the attachment.
Standard equipment
2 front working light
2 front working light to illuminate the working area
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
DBS (Dynamic Block System)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.
Hydraulic multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil
4-functions joystick
4-functions joystick allows an easy control of the machine.
Mechanical parking brake
Mechanical parking brake
ROPS-FOPS Level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Customizations
Additional working lights, LED
Additional working lights, LED, set of 3
Driver area cover
Covers the machine interior, protects against rain, snow, etc.
Heating system
Three-way heating with adjustable air flows and temperature.
Fully enclosed cab (glass)
This is the best insulation system for the driver to protect him from cold, wind, rain, and snow.
Easy access thanks to the large door and the compass glass opening.
Multiconnector to quick coupling 3 lines adapter
Adaptor for machines, in order to connect standard flat face single lines connections. Suggested for attachments equipped with hydraulic cylinders, not with hydraulic motors. The adaptor has 3 lines to fulfill the connections with any kind of attachments.
Snow chains
MultiOne snow chains improve traction on snow.
Beacon light
Beacon light ensures more visibility and safety.
Wheel spacer
Spacers are used to make the machine wider and increase its stability.
Tie down bracket on wheel hub
The tie down brackets mounted on wheel hub makes easier to tie down the machine on a trailer.
Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.
ACI
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.
Backup warning beeper
It help keep everyone safer during MultiOne machine operation.
Rear weights
Backweights are used to increase the lifting capacity of the machine. They are to be mounted on the rear of the machine.
LED road lights
LED road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
Smart Cabin
The most competitive solution for the operator who wants to improve working conditions thanks to a light cabin which limits the discomfort created by weathering.
Trailer coupling
Rear tow hook with double connection: with tow ball (car type) or tow pin (agricultural type).
Left protection bar for operator
A side-protection bar that has been certified and awarded as a techincal safety innovating system. It is placed on the left side of the machine to protect the operator from falling out of the vehicle. It can be locked and unlocked very quickly thanks to a special mechanism.
