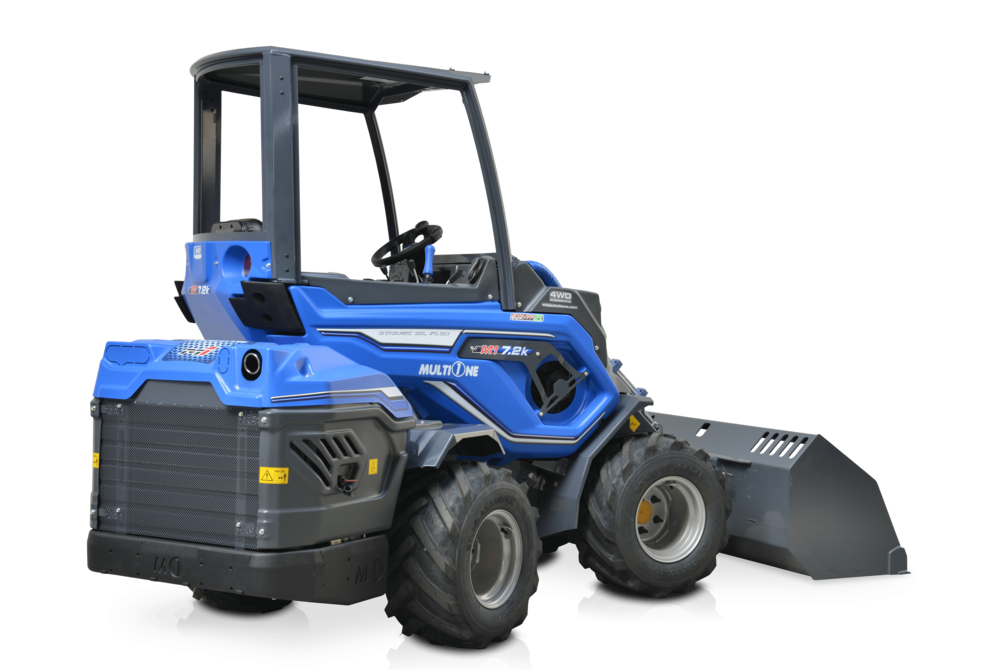

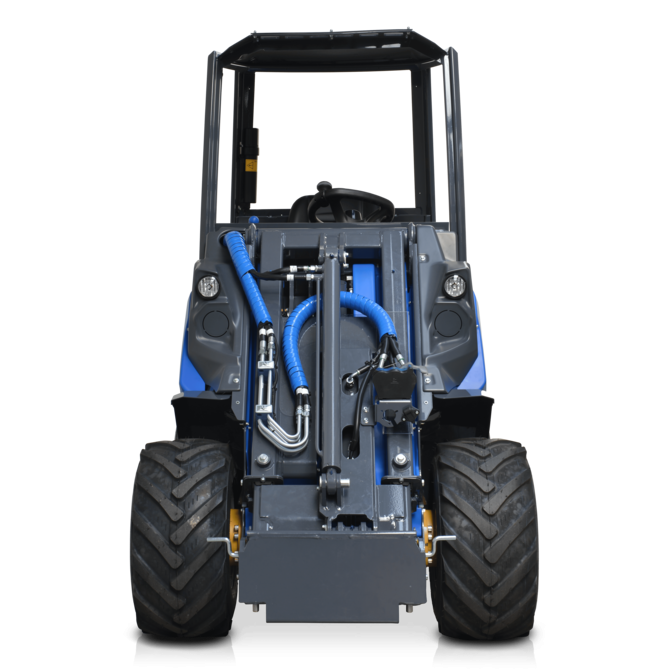

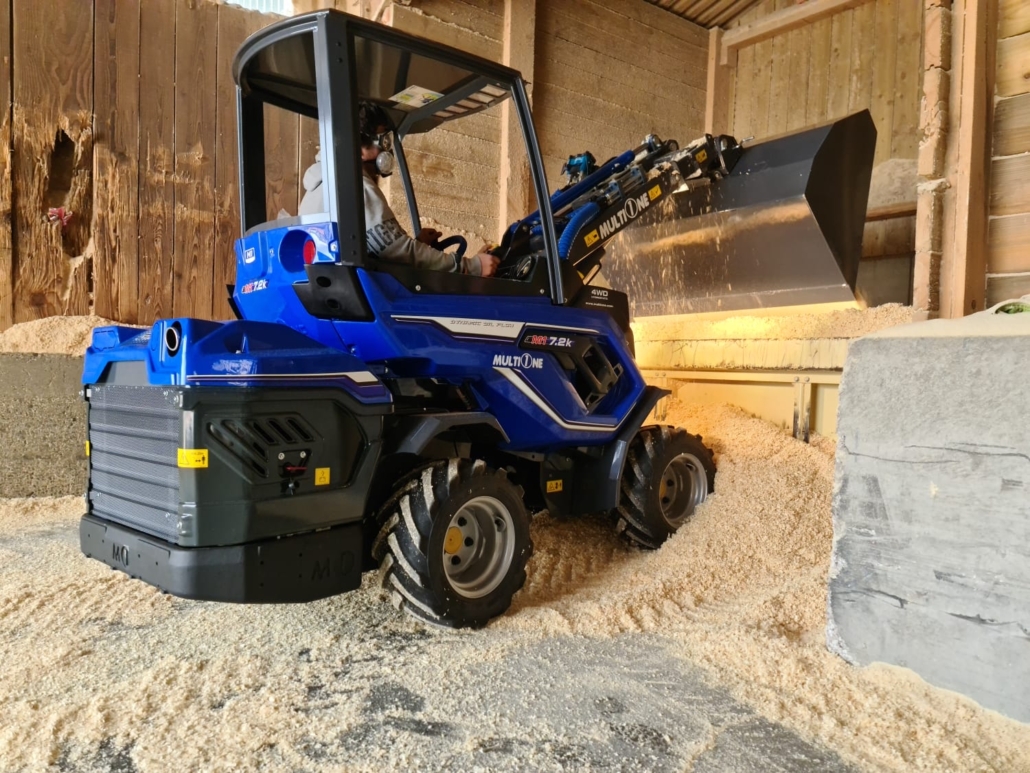

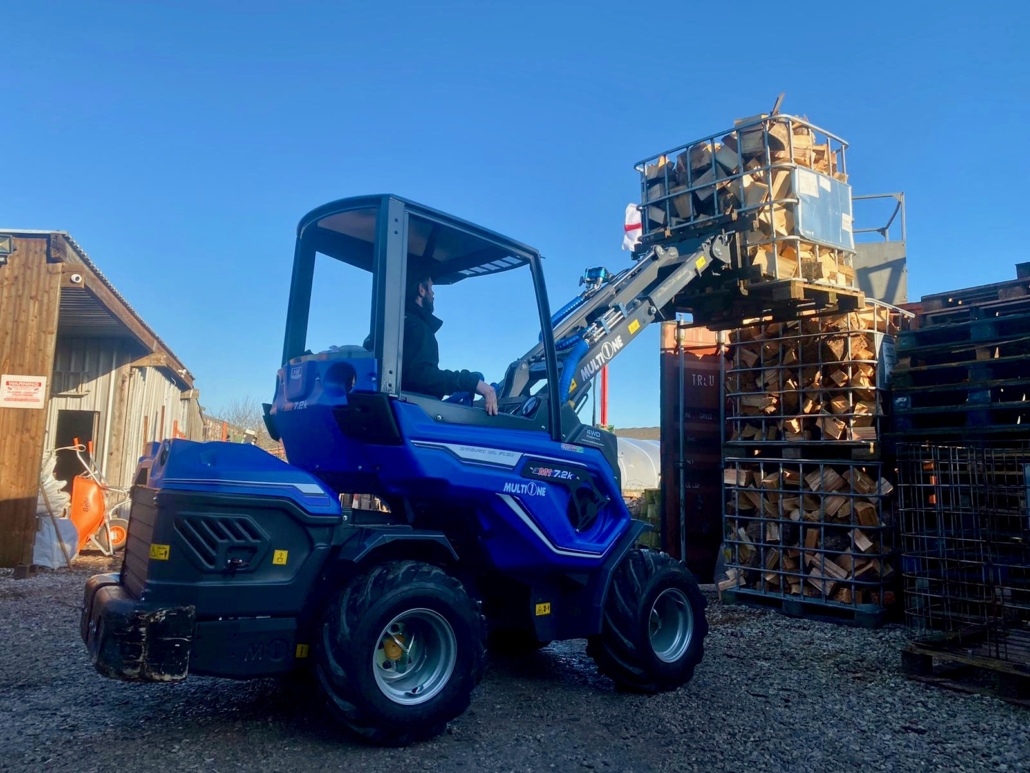

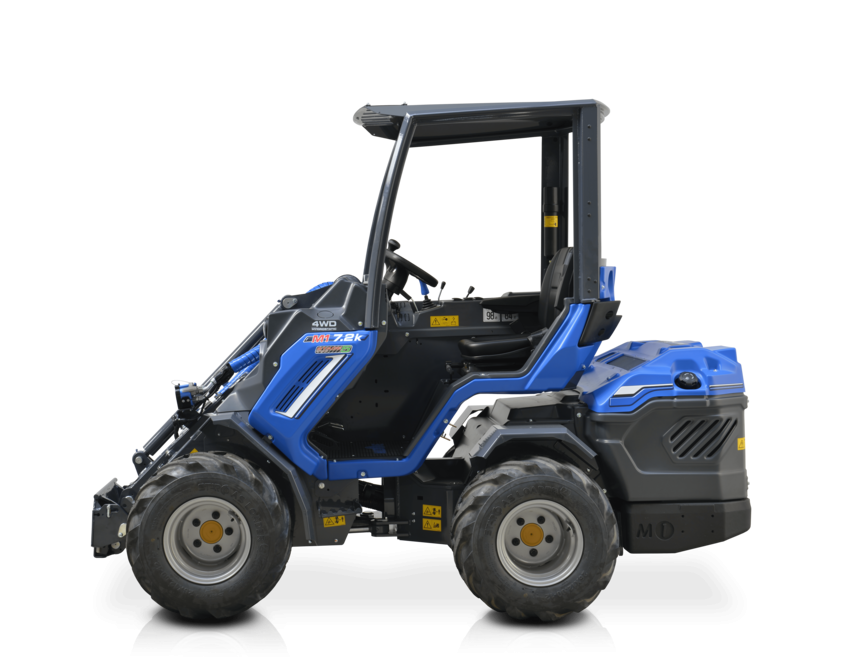

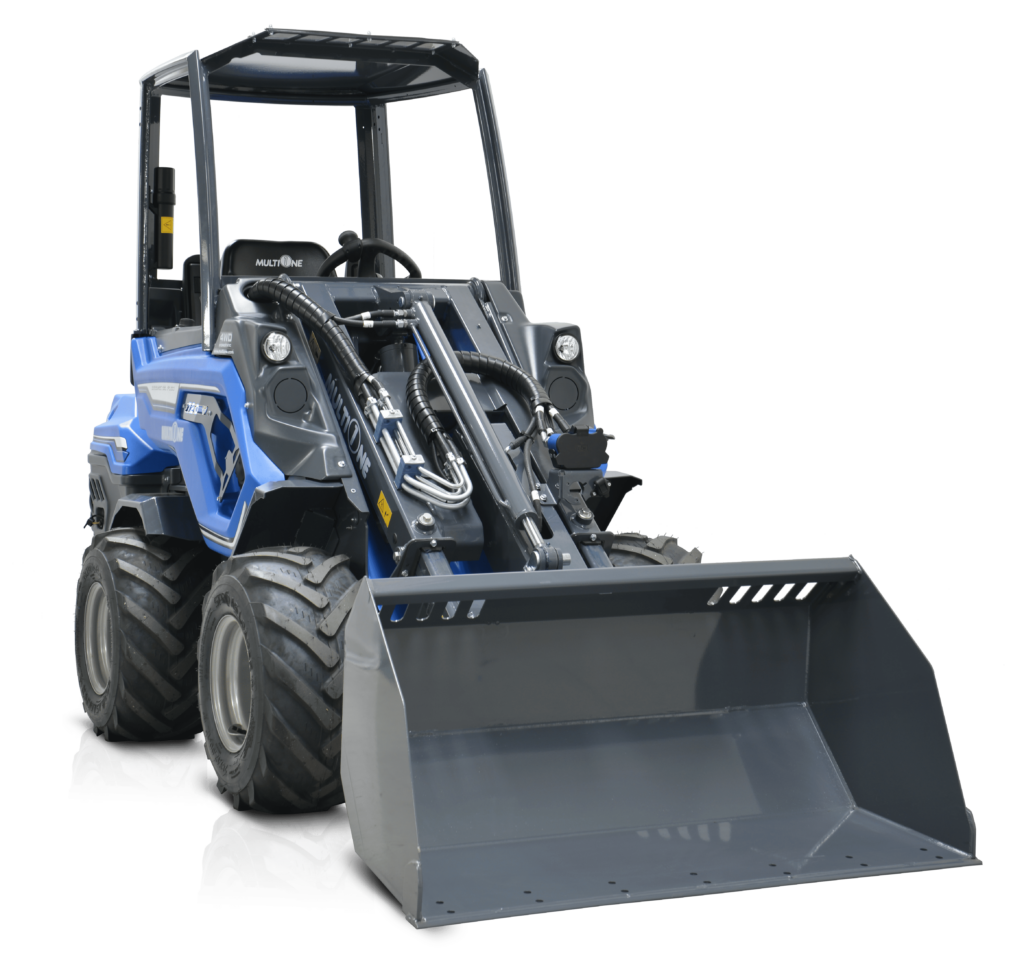

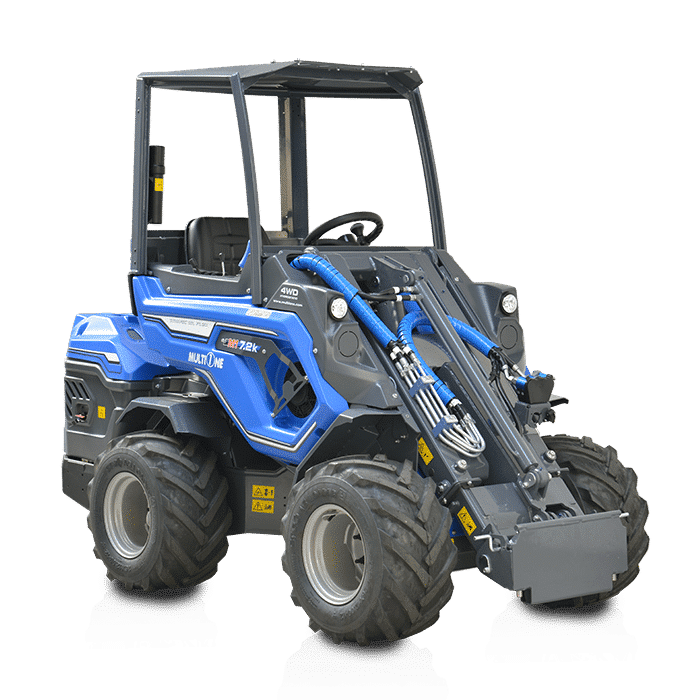

7 series
MultiOne 7 series is the winning combination of power, speed and agility.
The powerful engine and the direct drive radial piston motors gives great speed and pushing force.
The new frame and telescopic boom assure high lifting capacity and agility.
MultiOne 7 Series captures the imagination with its even more potent presence, the standout performance and innovative features. The MultiOne 7 Series builds naturally on the strengths of the most successful multifunctional mini loaders: multi functionality and performance.
MultOne 7 series articulated mini loaders are the ideal entry level machine aimed at professionals in the farming, agriculture or construction sectors looking for alternatives to manual labour or a skid steers.
7 SERIES PLUS:
- Advanced and modern frame design
- Integrated backweights
- Great lifting height and capacity
Features

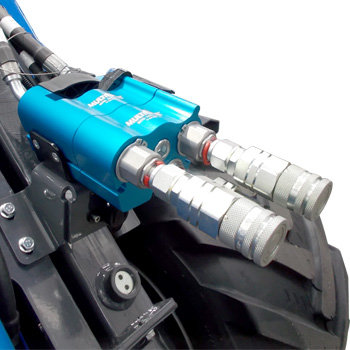

Hydraulic Multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.

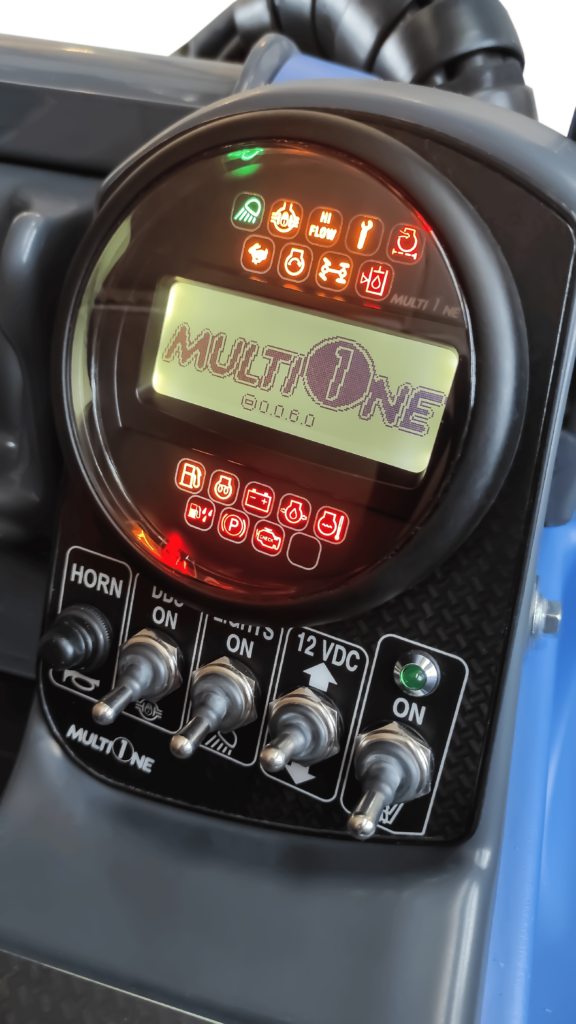

LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Radial piston wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.

Dbs (dynamic block system)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Rops fops level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.

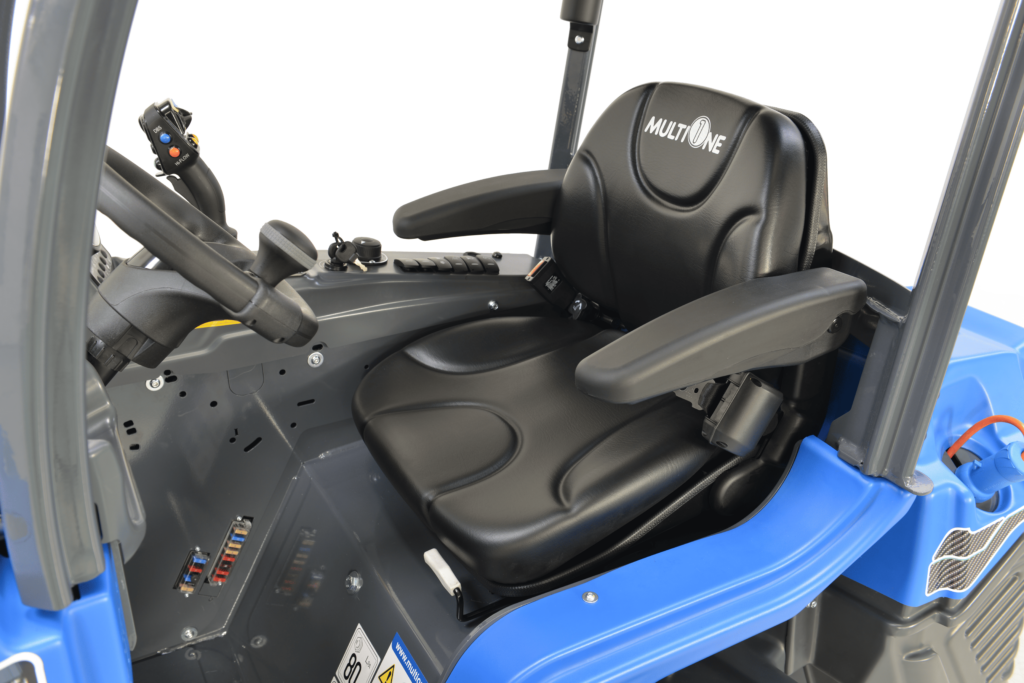

Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.
2 front working lights
2 front working lights to illuminate the working area
Mechanical parking brake
Mechanical parking brake

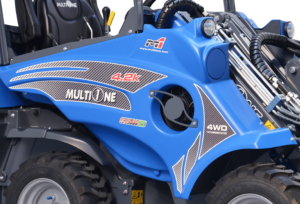

Unbreakable body panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.

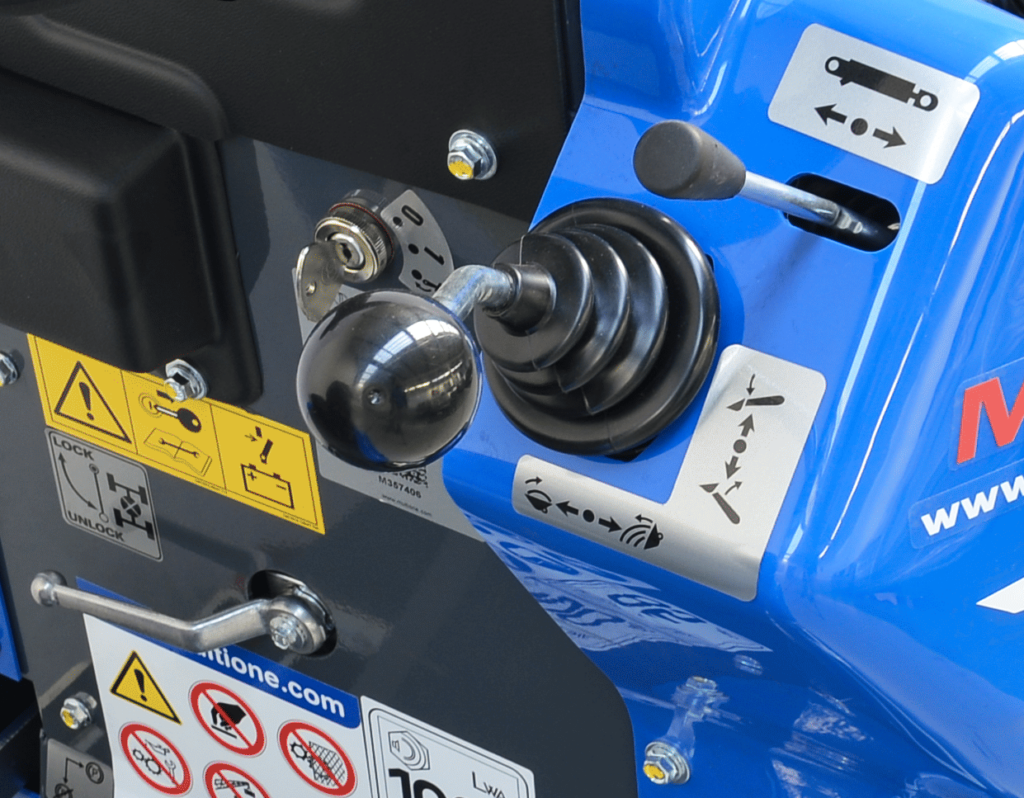

4-functions joystick
4-functions joystick allows an easy control of the machine. Two auxiliary levers control the extension of the telescopic boom and the hydraulic front outlets.
Hi flow
Additional pump that increases the outlets oil flow.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil

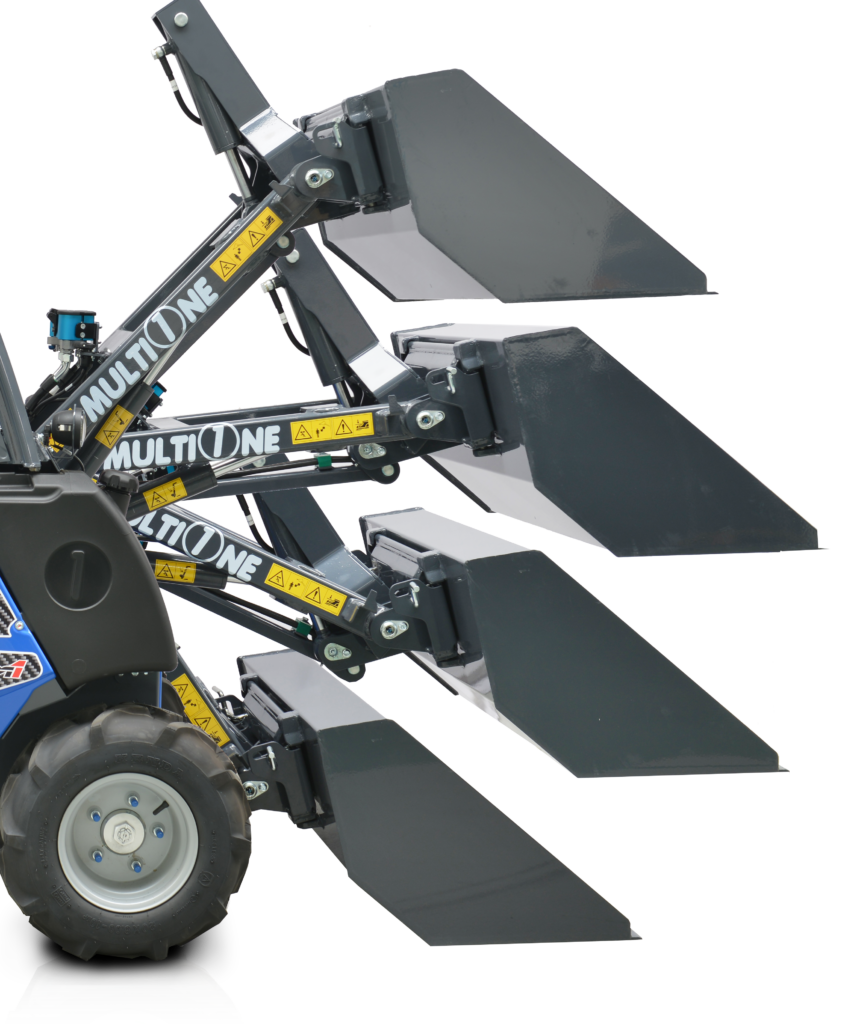

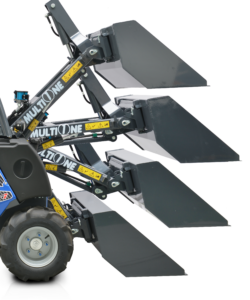

Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Integrated rear weight
Integrated backweights are used to increase the lifting capacity of the machine. They are mounted inside the machine.
Technical data
7.2 K | |
---|---|
Lifting Capacity Straight, Max (*) | 1380 kg |
Power | 25 hp |
Speed | 9 km/h |
Flow rate | 40 l/min |
Lift Height | 2,90 m |
Pushing Force (c) | 1690 kgf |
Weight | 1590 kg |
(*) It’s the maximum load that can be lifted just off the ground when the machine is straight and with rear weights. Weight of attachment is included.
Standard equipment

DBS (Dynamic Block System)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.
Hydraulic multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil
LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Multi-disk parking brake
Multiple Disc Brakes spring loaded and hydraulically released.
Radial Piston Wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.
ROPS-FOPS Level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.

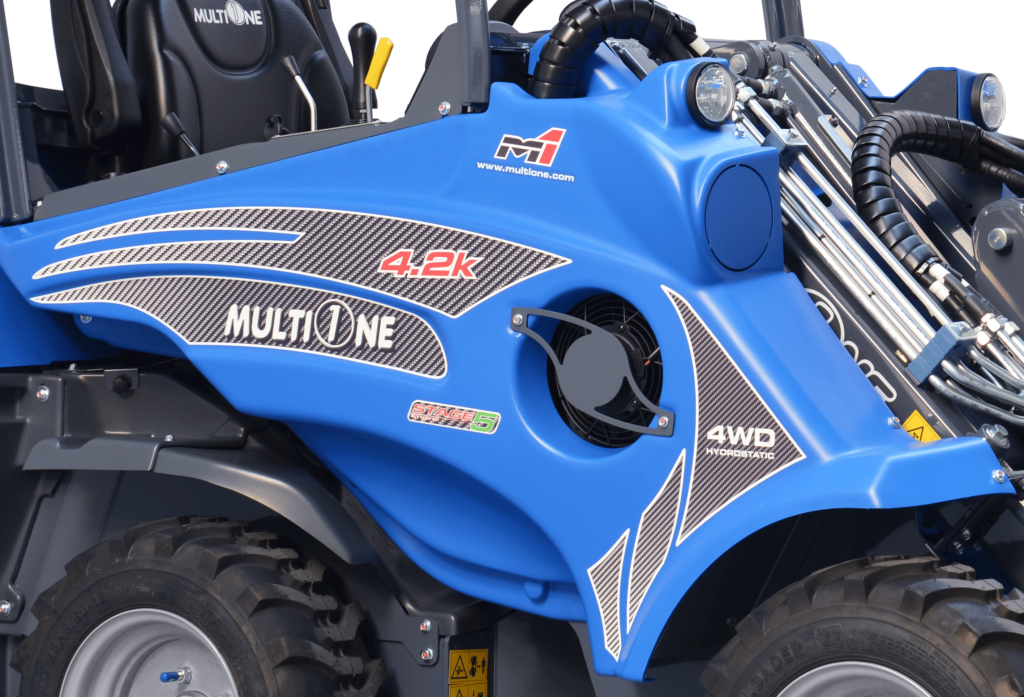

Unbreakable Body Panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.
2 front working light
2 front working light to illuminate the working area
4-functions joystick
4-functions joystick allows an easy control of the machine.
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
Attachments
Customizations

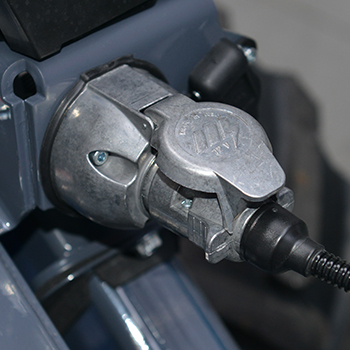

ACI
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.

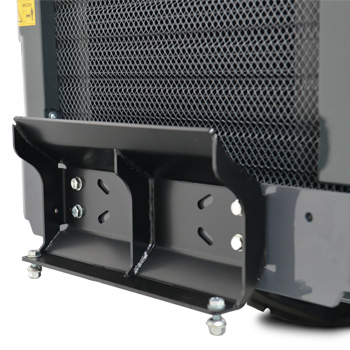

Attachment coupling plate for rear mounting
It is used to assemble attachments on the rear of the machine.

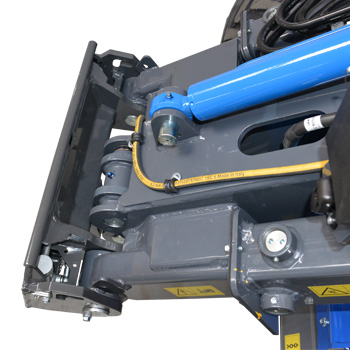

Automatic locking plate
On the automatic attachment plate the locking pins move hydraulically and are operated from cockpit.
This way the driver can stay on the seat when coupling and disconnecting non-hydraulic attachments.
Backup warning beeper
It help keep everyone safer during MultiOne machine operation.

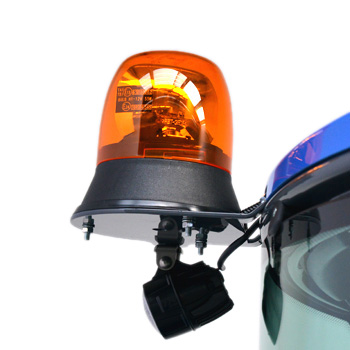

Beacon light
Beacon light ensures more visibility and safety.
Engine block heater
It is an ideal device for cold temperatures.
The system keeps the engine at an optimal temperature for easy starting with very cold climates.

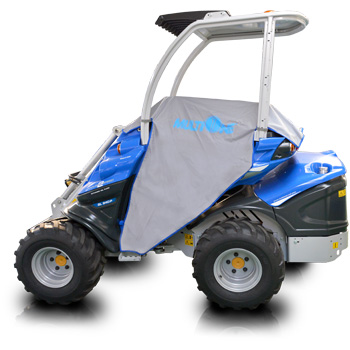

Driver area cover
Covers the machine interior, protects against rain, snow, etc.

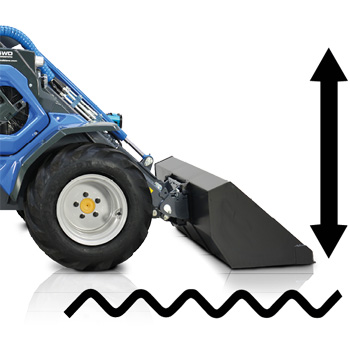

Floating boom valve
It allows the mounted attachments to follow the contours of the land perfectly. Ideal for applications in agriculture and in the care of the green areas.

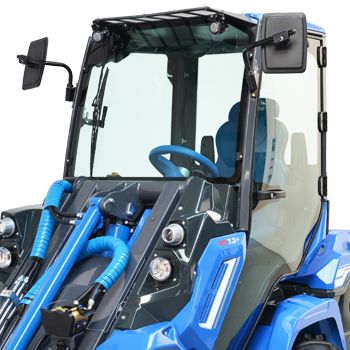

Fully enclosed cab (glass)
This is the best insulation system for the driver to protect him from cold, wind, rain, and snow.
Easy access thanks to the large door and the compass glass opening.
Heating system
Three-way heating with adjustable air flows and temperature.

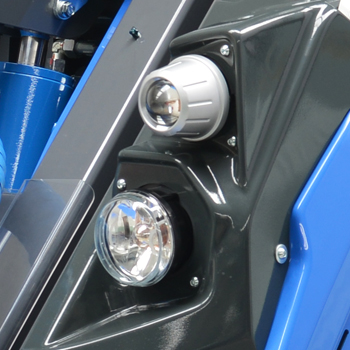

LED road lights
LED road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
Multi function joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.

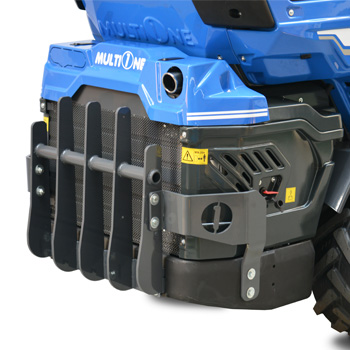

Rear bull bar
Rear bull bar.

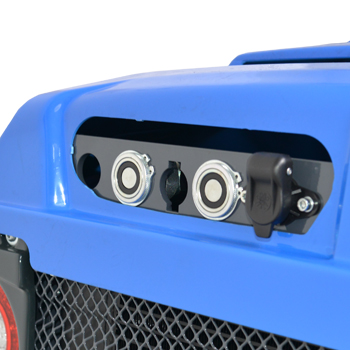

Rear outlets
They are used to mount on the rear side attachments. The rear outlets are controlled by the control panel.

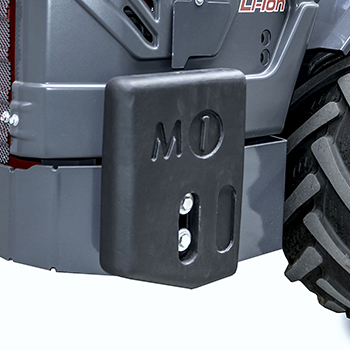

Rear side weights
Rear side weights are used to increase the lifting capacity of the machine. It’s possibile to mount them also with other rear weights mounted.
Two kit (80 kg per side, 160 kg total) can be mounted, screw is required.

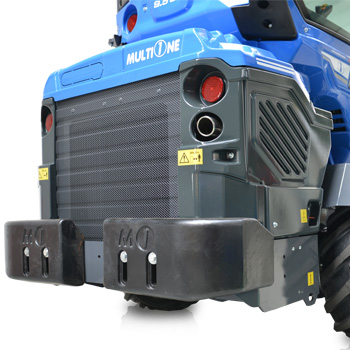

Rear weights
Backweights are used to increase the lifting capacity of the machine. They are to be mounted on the rear of the machine.

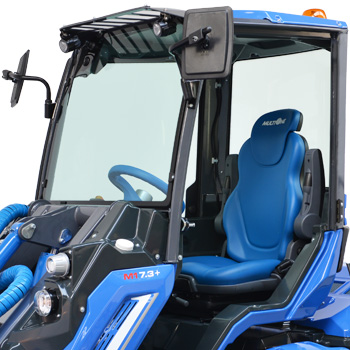

Smart Cabin
The most competitive solution for the operator who wants to improve working conditions thanks to a light cabin which limits the discomfort created by weathering.

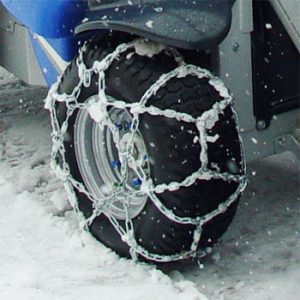

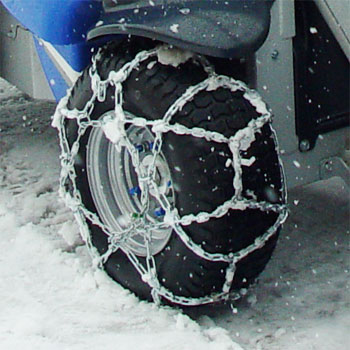

Snow chains
MultiOne snow chains improve traction on snow.

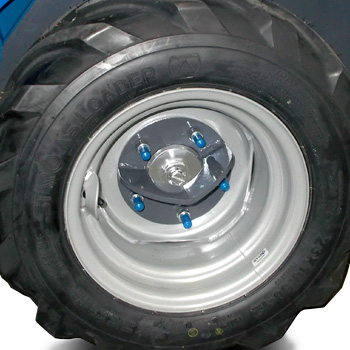

Tie down bracket on wheel hub
The tie down brackets mounted on wheel hub makes easier to tie down the machine on a trailer.

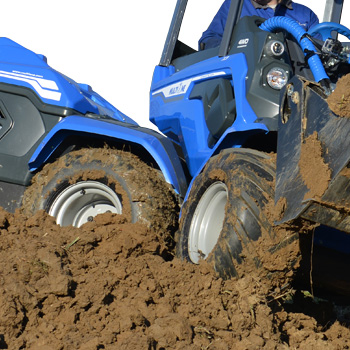

Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.

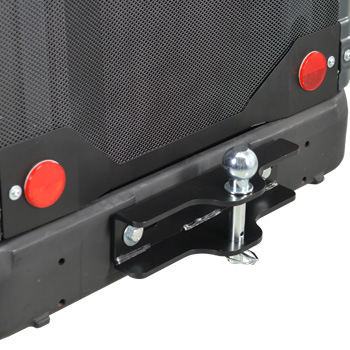

Trailer coupling
Rear tow hook with double connection: with tow ball (car type) or tow pin (agricultural type).

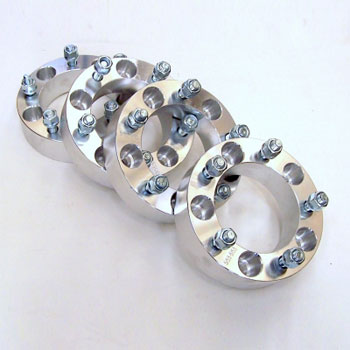

Wheel spacer
Spacers are used to make the machine wider and increase its stability.
12V rear electric socket
12 Volt rear electric socket to connect the attachments.

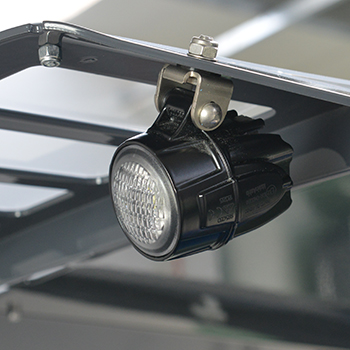

3 aux working led lights
3 auxiliary working LED lights for more visibility.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
