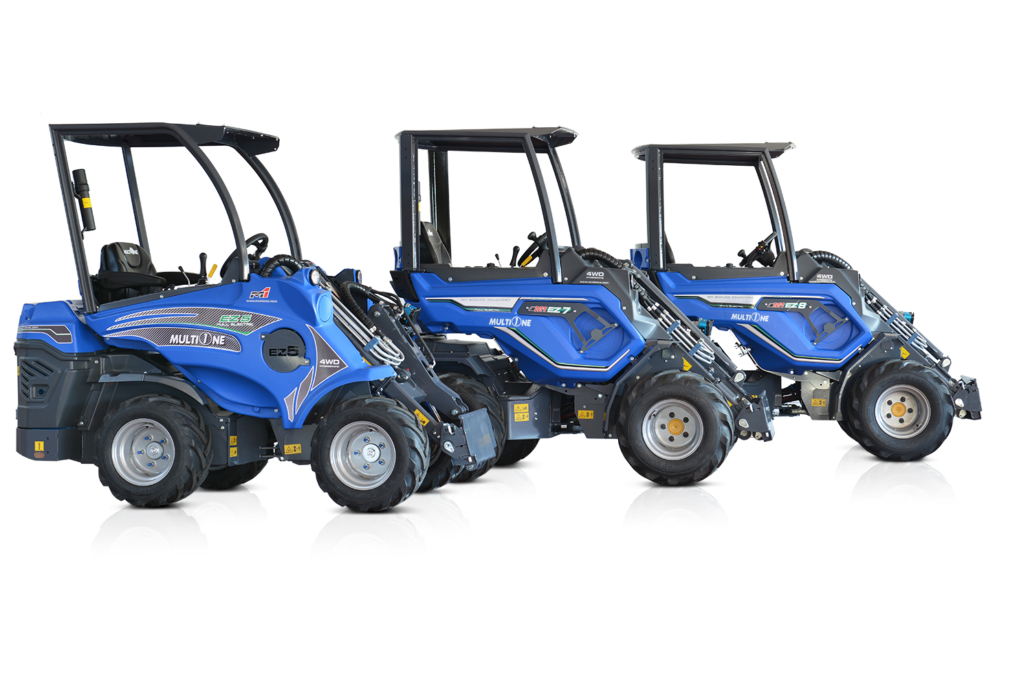

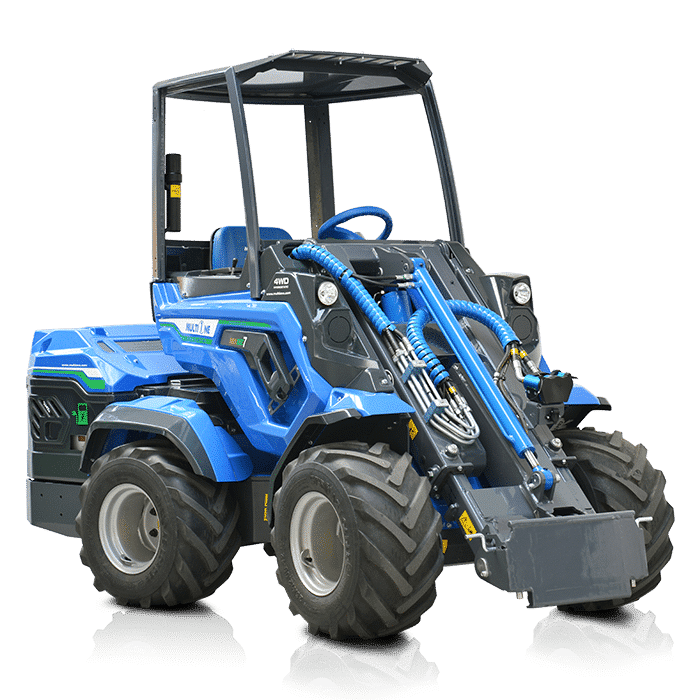

EZ series
Innovation is a consolidated MultiOne’s strong value. Environmental awareness is constantly growing and electromobility is not anymore a futuristic vision: it is reality.
These facts has driven us to design a full electric version of our models.
The target was to guarantee the same performance in an electrically operated machine as our diesel mini loaders.
This was achieved: MultiOne Emission Zero series is reality
EZ SERIES PLUS:
- Battery powered electric loader
- Emission Zero, no exhaust fumes
- Very low noise emissions
- Low running costs
- New transmission pump
- Li-ION and Lead acid battery with a long operating time
- Integrated battery charger as standard, which makes it possible to charge batteries anywhere a domestic power outlet is available.
- Remote monitoring system (EZ8)
- External fast charging station available (EZ5 and EZ8)
- Especially suitable for indoor use where ventilation is limited or non-existent and there are strict noise restrictions
Features

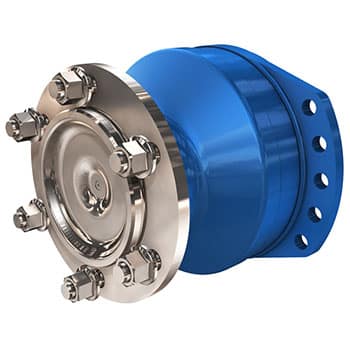

4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
4-functions joystick
4-functions joystick allows an easy control of the machine. Two auxiliary levers control the extension of the telescopic boom and the hydraulic front outlets.
Unbreakable body panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.
Dbs (dynamic block system)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.

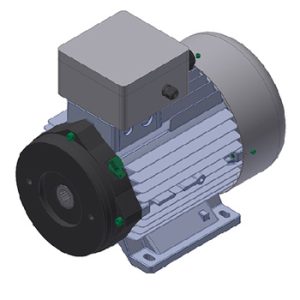

Twin motors single-ended circuits
EZ machine is equipped with two electric motors: a motor for transmission and a motor for loader boom operation and auxiliary hydraulics.

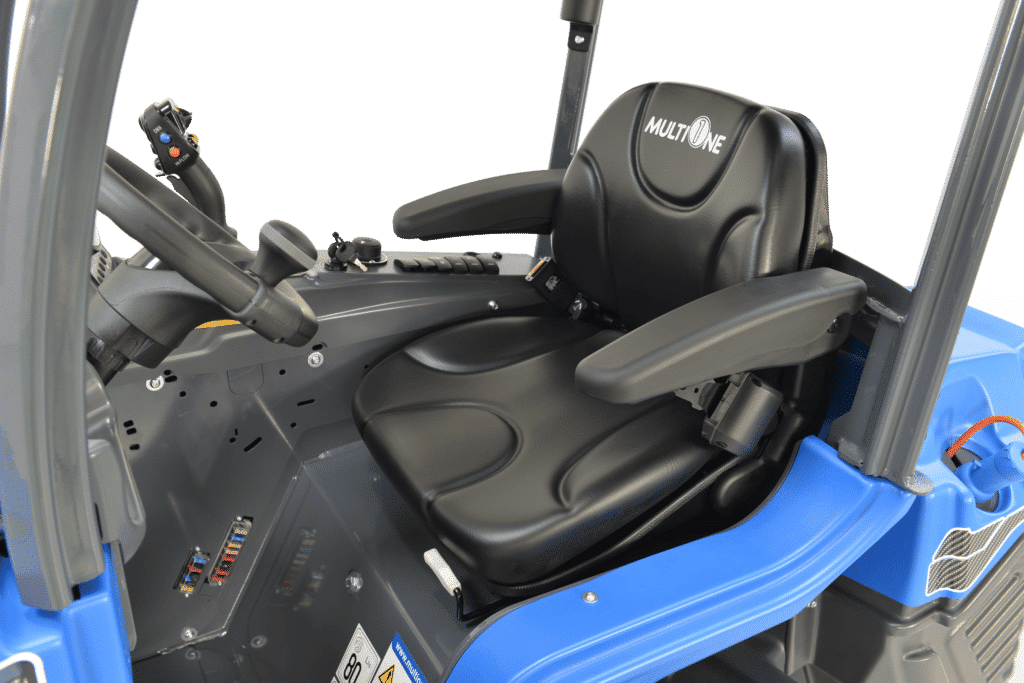

Ergonomic seat
It significantly increases the comfort of the machine.
Hydraulic Multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
LCD graphic display with programmed service
LCD graphic display with programmed service (battery charge level, hour meter, maintenance light, light indicator and other indicators)
Self-levelling H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
2 front working lights
2 front working lights to illuminate the working area
Mechanical parking brake
Mechanical parking brake

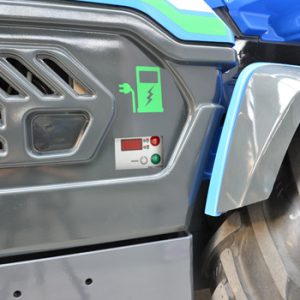

Smart charger
The smart charger is included in the machine, which enables charging from any domestic power outlet.
Rops fops level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Li-ion battery
The Li-Po battery assures a long operating time.
Technical data
| EZ 5 | EZ 7 | EZ 8 | |
|---|---|---|---|
| Lifting Capacity Straight, Max (*) | 890 kg | 1.224 kg | 1.420 kg |
| Battery capacity | 10,8 kWh | 16,5 kWh | 20,5 kWh |
| Speed | 12 km/h | 12 km/h | 12 km/h |
| Flow rate | 35 l/min | 35 l/min | 35 l/min |
| Lift Height | 2,75 m | 2,90 m | 2,90 m |
| Pushing Force (c) | 900 kgf | 2.050 kgf | 1700 kgf |
| Weight | 1.020 kg | 1.860 kg | 1570 kg |
| Engine | 2 electric motor | 2 electric motor | 2 electric motor |
| Fuel | Full electric | Full electric | Full electric |
| Transmission | Hydrostatic | Hydrostatic | Hydrostatic |
| Breakout force / 50 cm | 800 kg | 1.700 kg | 1.700 kg |
| Turning radius: inside/outside | 800 / 200 mm | 825 / 2090 mm | 825 / 2090 mm |
| Standard tires | 23 × 10.50-12 ET-25 | 26 × 12.00-12 | 26 × 12.00-12 |
| Tipping load | 1.110 kg | 2.070 kg | 1.780 kg |
| Code | C977060 | C962020 | C963020 |
(*) It’s the maximum load that can be lifted just off the ground when the machine is straight, with backweights and on firm, level ground. Boom not extended. Weight of attachment included, the tipping load is the value indicated minus the weight of the attachment.
Standard equipment
2 front working light
2 front working light to illuminate the working area
4-functions joystick
4-functions joystick allows an easy control of the machine.
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
DBS (Dynamic Block System)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Twin motors Single-Endend Circuits
EZ machine is equipped with two electric motors: a motor for transmission and a motor for loader boom operation and auxiliary hydraulics.
Ergonomic seat
It significantly increases the comfort of the machine.
Hydraulic multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Li-ION battery
The Li-Po battery assures a long operating time.
Mechanical parking brake
Mechanical parking brake
ROPS-FOPS Level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Smart charger
The smart charger is included in the machine, which enables charging from any domestic power outlet.
Unbreakable Body Panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.
Customizations

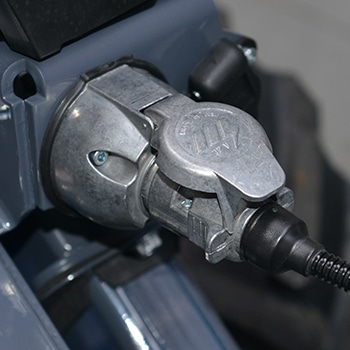

ACI
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.
Rear weights
Backweights are used to increase the lifting capacity of the machine. They are to be mounted on the rear of the machine.
Rear bull bar
Rear bull bar.
Attachment coupling plate for rear mounting
It is used to assemble attachments on the rear of the machine.
Smart Cabin
The most competitive solution for the operator who wants to improve working conditions thanks to a light cabin which limits the discomfort created by weathering.
Multi function joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.

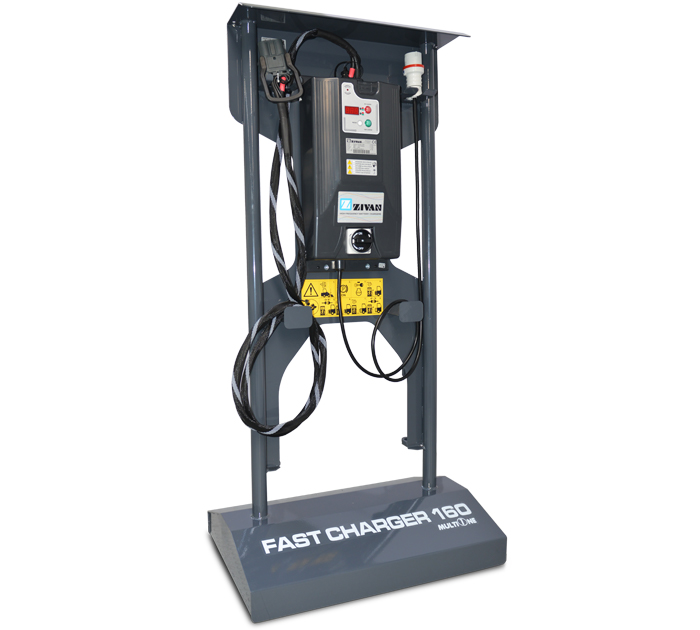

Fast charging station
- Suitable for EZ 5 and EZ 8
- Quick charge. 1 hour charging:
– EZ 5 – 60% charge (with 95A Fast Charging Station)
– EZ 8 – 50% charge (with 160A Fast Charging Station)
- CAN bus communication for lithium will ensure efficient and fast charging
- Peak Efficiency: 93%
- LCD display
- Forced air-cooling
- MultiOne coupling plate
Automatic locking plate
On the automatic attachment plate the locking pins move hydraulically and are operated from cockpit.
This way the driver can stay on the seat when coupling and disconnecting non-hydraulic attachments.
Multiconnector to quick coupling 3 lines adapter
Adaptor for machines, in order to connect standard flat face single lines connections. Suggested for attachments equipped with hydraulic cylinders, not with hydraulic motors. The adaptor has 3 lines to fulfill the connections with any kind of attachments.
Rear side weights
Rear side weights are used to increase the lifting capacity of the machine. It’s possibile to mount them also with other rear weights mounted.
Two kit (80 kg per side, 160 kg total) can be mounted, screw is required.
Left protection bar for operator
A side-protection bar that has been certified and awarded as a techincal safety innovating system. It is placed on the left side of the machine to protect the operator from falling out of the vehicle. It can be locked and unlocked very quickly thanks to a special mechanism.
Driver area cover
Covers the machine interior, protects against rain, snow, etc.
Beacon light
Beacon light ensures more visibility and safety.
Trailer coupling
Rear tow hook with double connection: with tow ball (car type) or tow pin (agricultural type).
LED road lights
LED road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
Floating boom valve
It allows the mounted attachments to follow the contours of the land perfectly. Ideal for applications in agriculture and in the care of the green areas.
Snow chains
MultiOne snow chains improve traction on snow.
Backup warning beeper
It help keep everyone safer during MultiOne machine operation.
Tie down bracket on wheel hub
The tie down brackets mounted on wheel hub makes easier to tie down the machine on a trailer.
12V rear electric socket
12 Volt rear electric socket to connect the attachments.
Wheel spacer
Spacers are used to make the machine wider and increase its stability.
