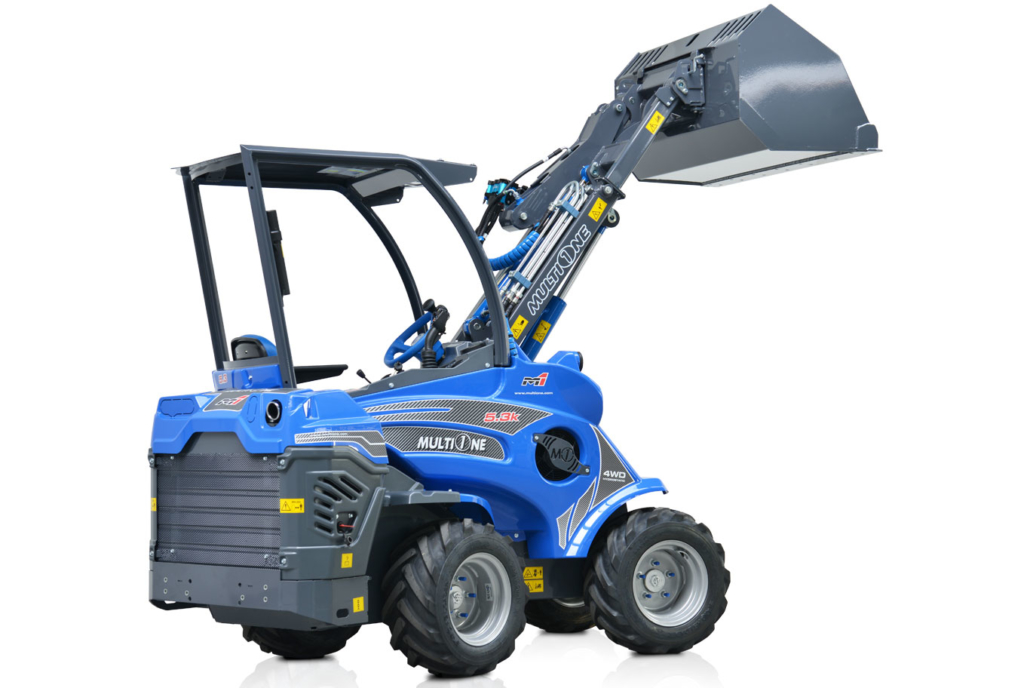

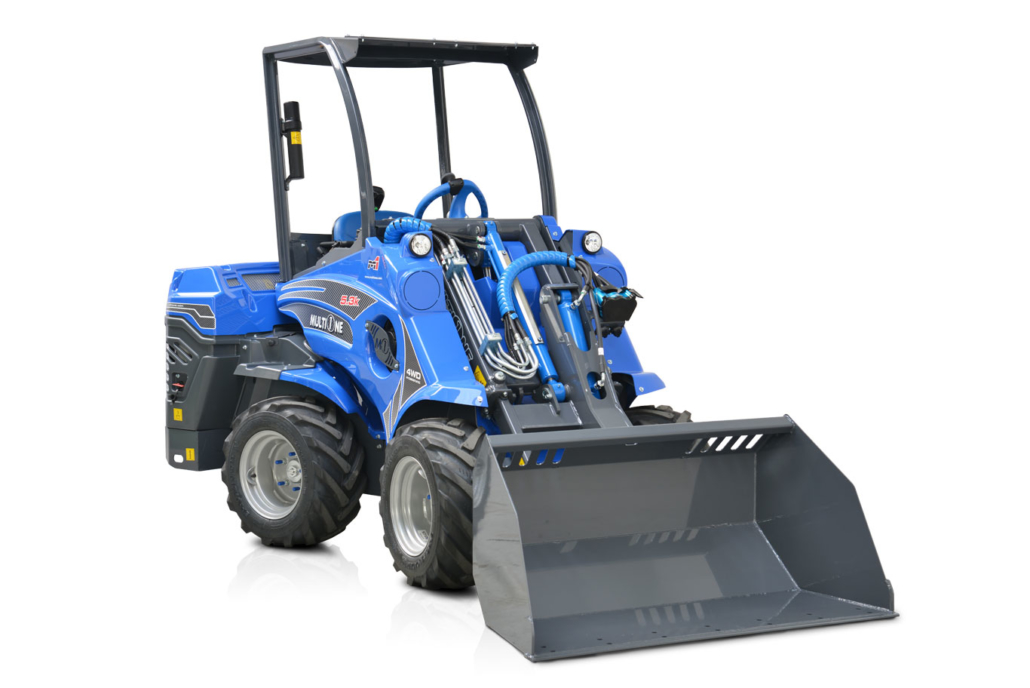

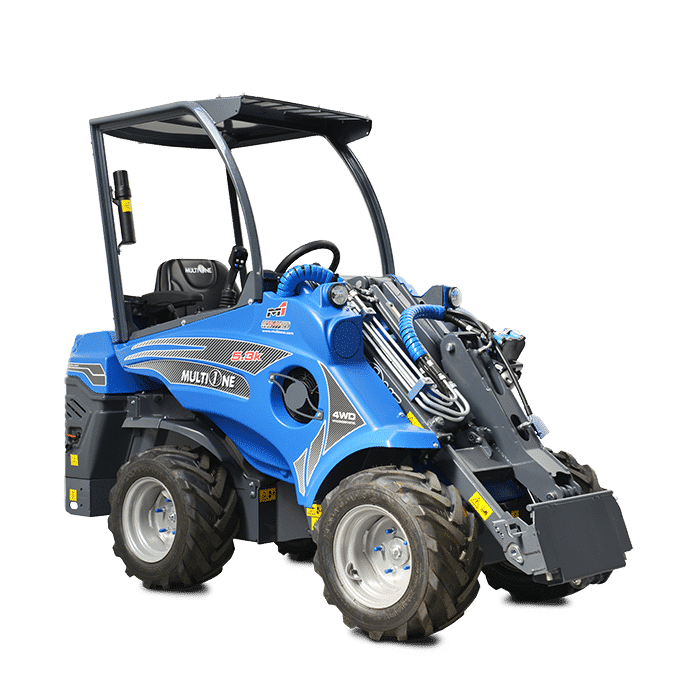

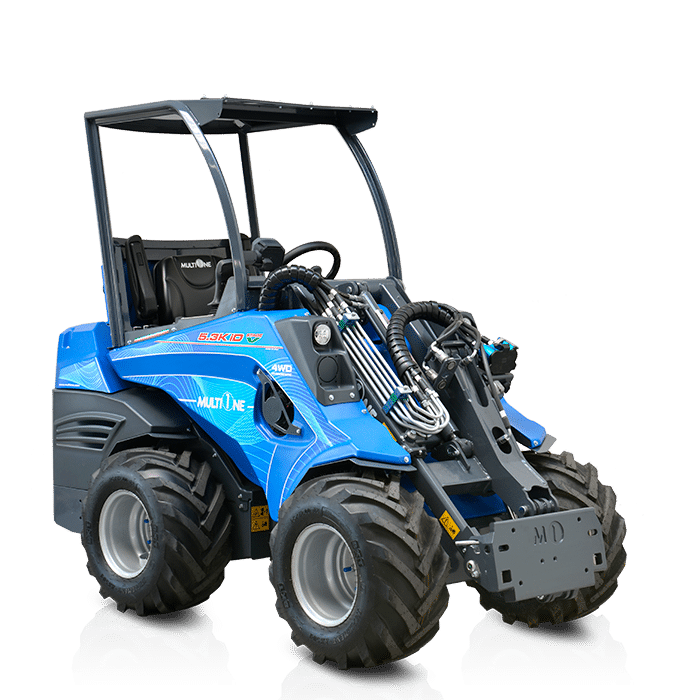

5 series
MultiOne 5 Series compact articulated mini loaders offer a winning combination of performance and low operating costs. No compromise between performance, power, economy, innovation, technology and design.
The telescopic boom combined with the compact size makes the 5 Series the right choice for anyone who needs boom outreach coupled with great agility in narrow spaces: from the DIY to the demanding professional.

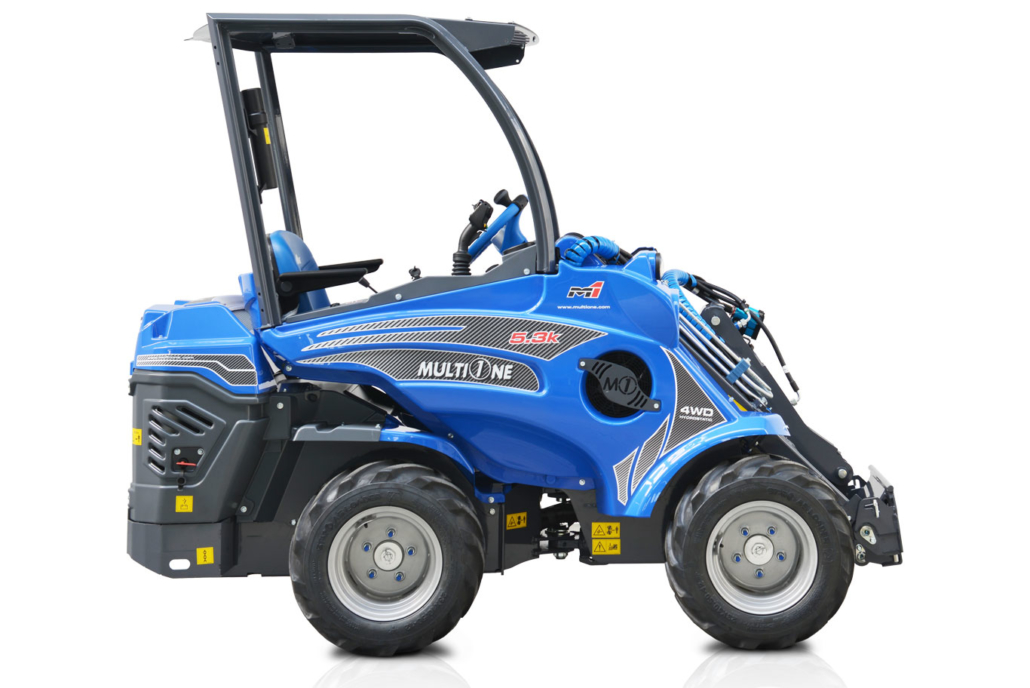

The new 5.3 K model is equipped with the Kubota D1305 – 3 cylinders – 1300 cc. engine. It meet the emission requirement for UE and US without hassle of electronic controls or any exhaust treatment.
The particular Multione setup make the engine deliver high torque at low revs giving many advantages to Multione hydraulic controls and circuits with a smooth, reactive and consistent power output.
The new configuration offers: 30% more torque and 20% more flow output for the attachments.
This mean much more power when it is needed, a smooth and constant power delivery at low rpm and the best attachments performance.
5 SERIES PLUS:
- Telescopic boom
- Compact dimensions
- Low operating cost
- Multi function joystick (5.3K)
- 50 l/min (13.2 GPM) output flow (5.3K)
- Big Block – 1300 cc displacement – Kubota engine (5.3K)
- Stage V and Tier 4 Final emission compliant (5.3k)
- Low emission (5.3k)
- Low noise

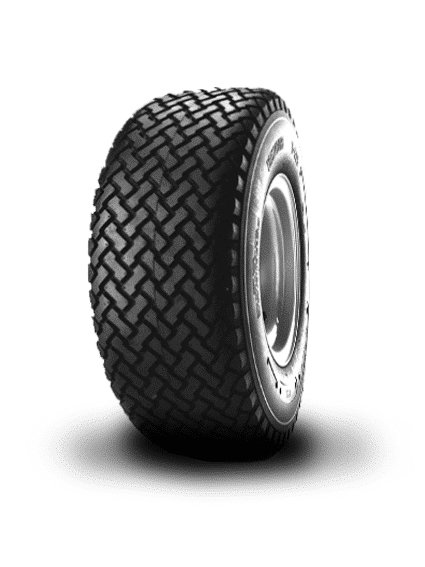

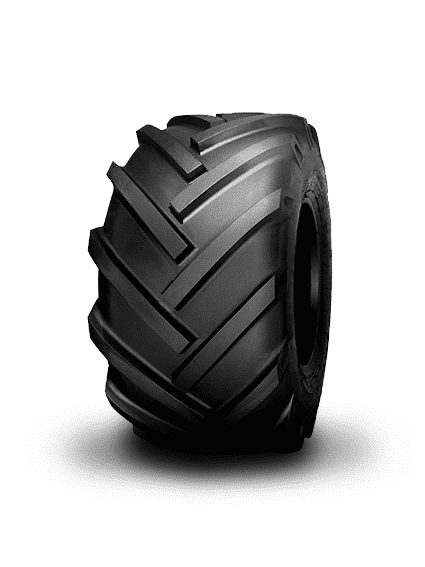

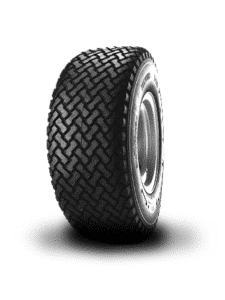

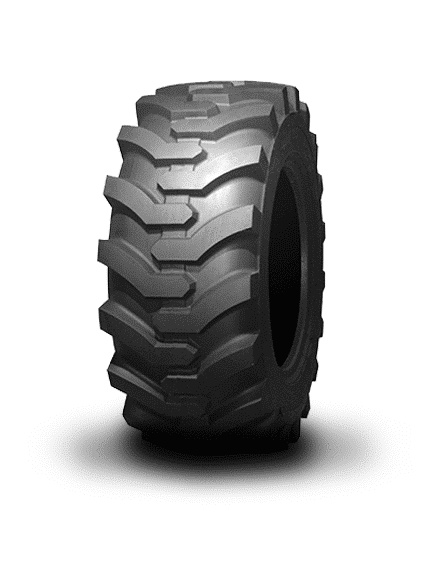

- Big tires available
- Very versatile
Features
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
Multi functions joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.
Aci
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.
Dbs (dynamic block system)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.

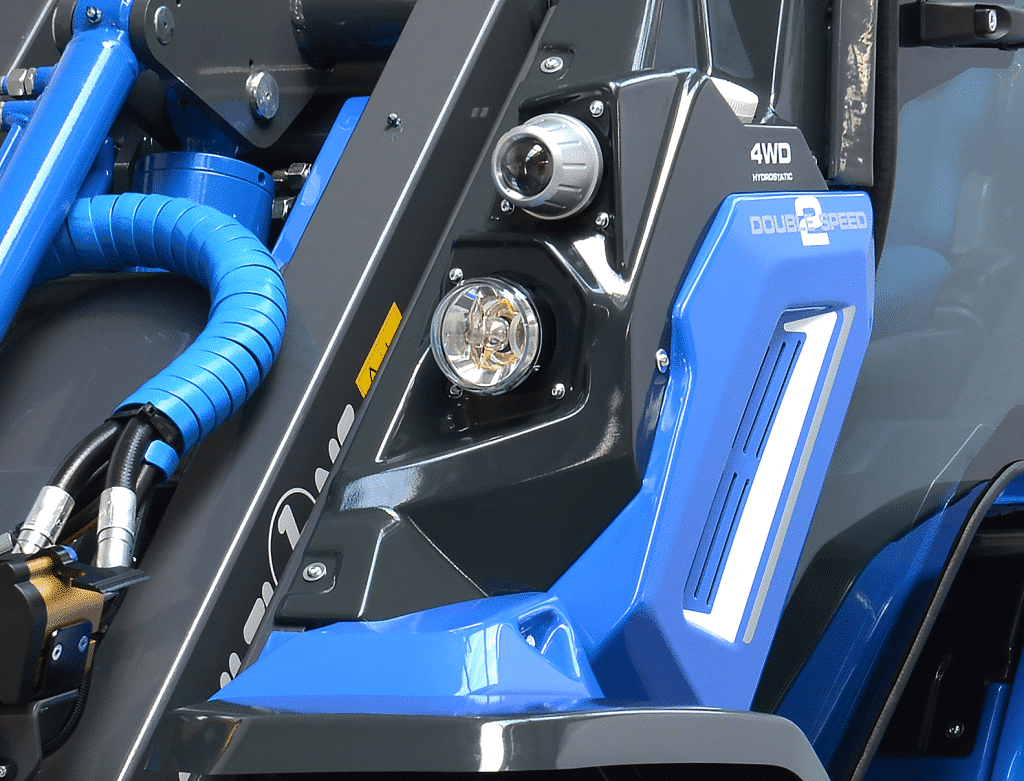

2 front working lights
2 front working lights to illuminate the working area

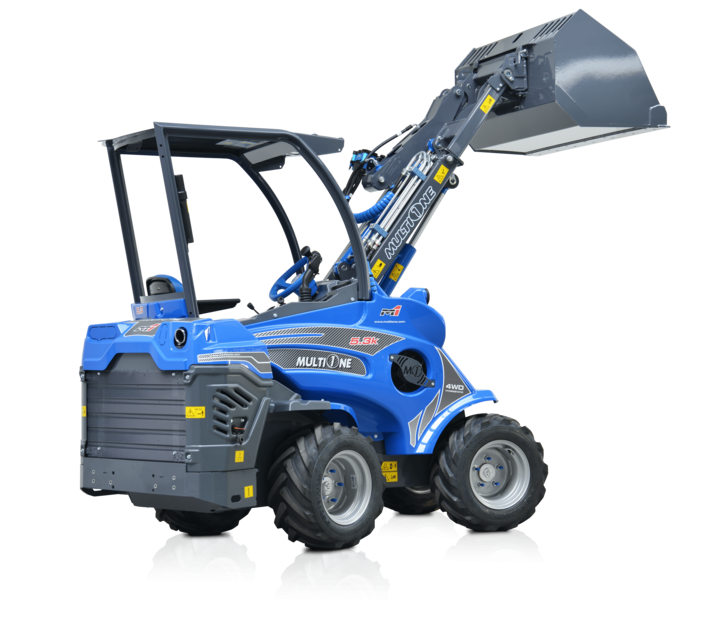

Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Hydraulic Multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Mechanical parking brake
Mechanical parking brake
LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)

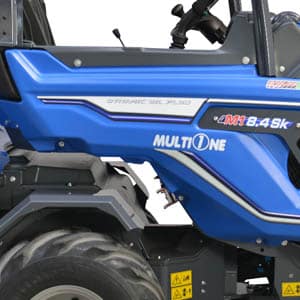

Unbreakable body panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil
Rops fops level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Hi flow
Additional pump that increases the outlets oil flow.
Technical data
| 5.2 K | 5.3 K | |
|---|---|---|
| Lifting Capacity Straight, Max (*) | 890 kg | 1030 kg |
| Power | 25 hp | 25 hp |
| Speed | 14 km/h | 12,5 km/h |
| Flow rate | 36 l/min | 50 l/min |
| Lift Height | 2,75 m | 2,75 m |
| Pushing Force (c) | 900 kgf | 900 kgf |
| Weight | 1020 kg | 1070 kg |
(*) It’s the maximum load that can be lifted just off the ground when the machine is straight, with backweights and on firm, level ground. Boom not extended. Weight of attachment included, the max lifting capacity is the value indicated minus the weight of the attachment.
Standard equipment
2 front working light
2 front working light to illuminate the working area
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
ACI
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.
DBS (Dynamic Block System)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.
HI-Flow
Additional pump that increases the outlets oil flow.
Hydraulic multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil
Multi function joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Mechanical parking brake
Mechanical parking brake
ROPS-FOPS Level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Unbreakable Body Panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.
Attachments
Customizations
Rear bull bar
Rear bull bar.
Beacon light
Beacon light ensures more visibility and safety.
Rear weights
Backweights are used to increase the lifting capacity of the machine. They are to be mounted on the rear of the machine.
Wheel spacer
Spacers are used to make the machine wider and increase its stability.
Snow chains
MultiOne snow chains improve traction on snow.
Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.
Left protection bar for operator
A side-protection bar that has been certified and awarded as a techincal safety innovating system. It is placed on the left side of the machine to protect the operator from falling out of the vehicle. It can be locked and unlocked very quickly thanks to a special mechanism.
Smart Cabin
The most competitive solution for the operator who wants to improve working conditions thanks to a light cabin which limits the discomfort created by weathering.
Rear outlets
They are used to mount on the rear side attachments. The rear outlets are controlled by the control panel.
Engine block heater
It is an ideal device for cold temperatures.
The system keeps the engine at an optimal temperature for easy starting with very cold climates.
Floating boom valve
It allows the mounted attachments to follow the contours of the land perfectly. Ideal for applications in agriculture and in the care of the green areas.
Rear side weights
Rear side weights are used to increase the lifting capacity of the machine. It’s possibile to mount them also with other rear weights mounted.
Two kit (80 kg per side, 160 kg total) can be mounted, screw is required.
Aux hydraulic outlets
Additional hydraulic outlets (front and/or rear).
Backup warning beeper
It help keep everyone safer during MultiOne machine operation.

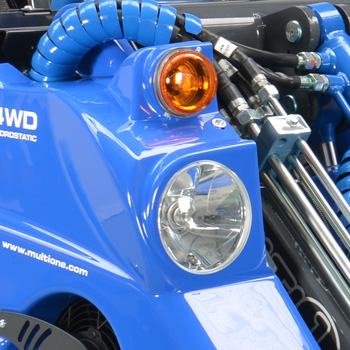

Road Lights
Road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.
Trailer coupling
Rear tow hook with double connection: with tow ball (car type) or tow pin (agricultural type).
12V rear electric socket
12 Volt rear electric socket to connect the attachments.
Attachment coupling plate for rear mounting
It is used to assemble attachments on the rear of the machine.

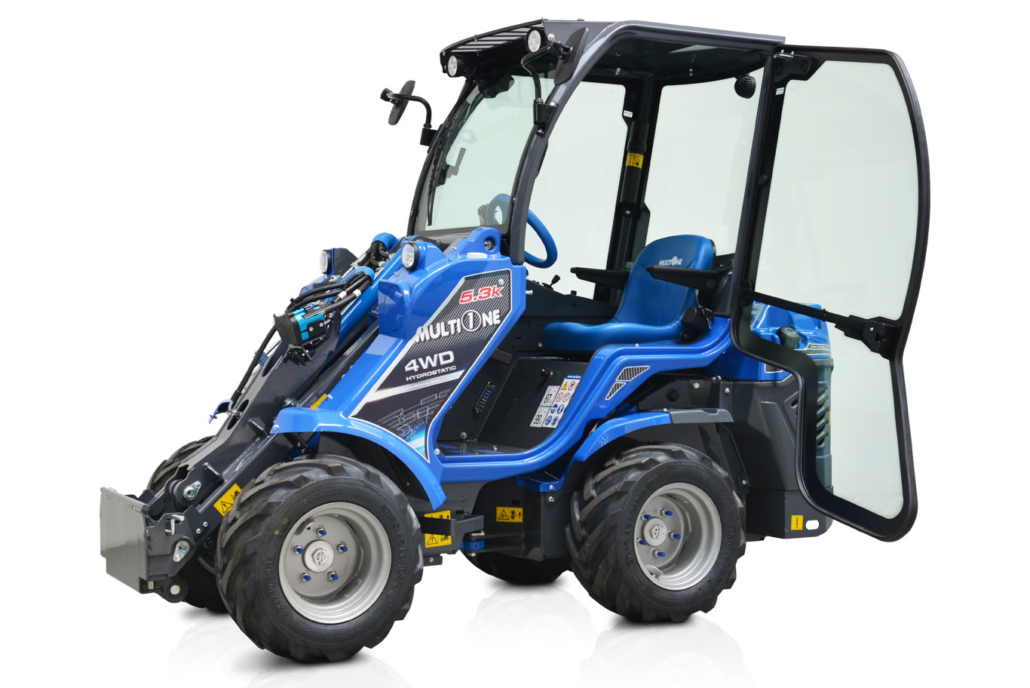

Fully enclosed cab (glass)
This is the best insulation system for the driver to protect him from cold, wind, rain, and snow.
Easy access thanks to the large door and the compass glass opening.

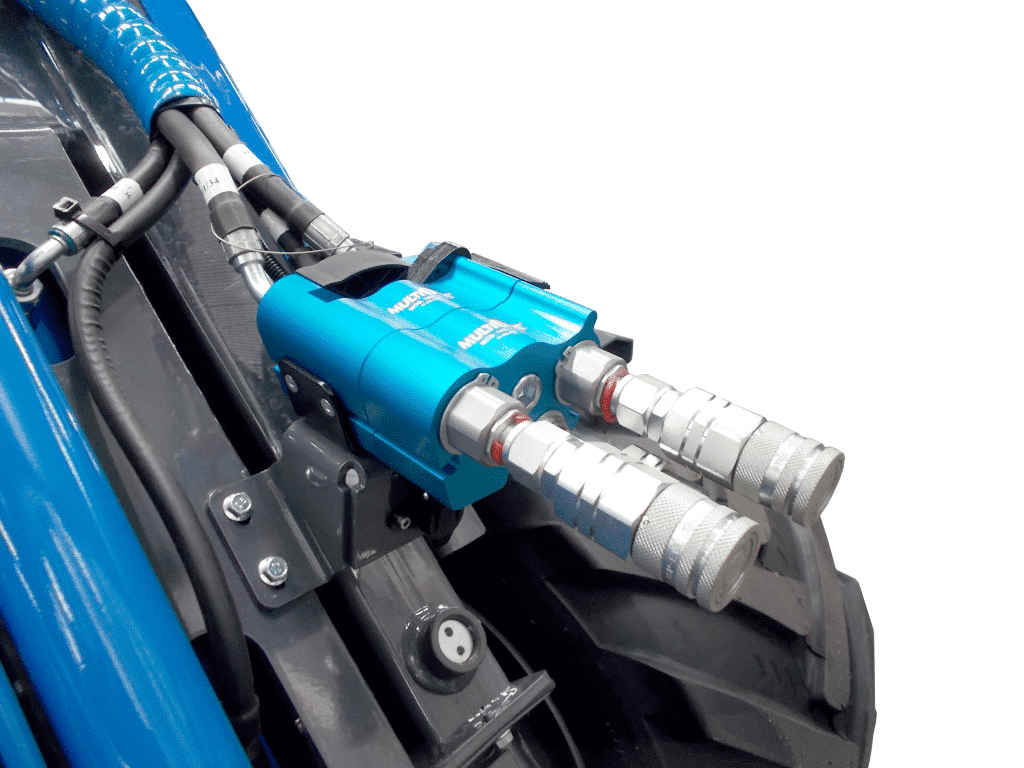

Multiconnector to quick coupling 3 lines adapter
Adaptor for machines, in order to connect standard flat face single lines connections. Suggested for attachments equipped with hydraulic cylinders, not with hydraulic motors. The adaptor has 3 lines to fulfill the connections with any kind of attachments.
Driver area cover
Covers the machine interior, protects against rain, snow, etc.
Tie down bracket on wheel hub
The tie down brackets mounted on wheel hub makes easier to tie down the machine on a trailer.
Heating system
Three-way heating with adjustable air flows and temperature.
LED road lights
LED road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
ACI
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.
Multi function joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
Automatic locking plate
On the automatic attachment plate the locking pins move hydraulically and are operated from cockpit.
This way the driver can stay on the seat when coupling and disconnecting non-hydraulic attachments.
