12V rear electric socket

12 Volt rear electric socket to connect the attachments.

2 front working light

2 front working light to illuminate the working area

2 speed

Electro-hydraulic speed regulation.

3 aux working led lights

3 auxiliary working LED lights for more visibility.

LED Technology Plus:

• High service life
• Minimal energy consumption
• Wear-free and maintenance-free
• Higher effective visibility
• Dust and water-resistant
• Compact sizes
• Rapid response times

3 lines quick coupling

3 line flat-face couplings designed for avoid leak oil during connection and disconnection.

3WD hydrostatic transmission

3WD hydrostatic transmission with differential lock

4-functions joystick

4-functions joystick allows an easy control of the machine.

4WD hydrostatic Direct Drive motors

4WD hydrostatic Direct Drive motors, proportional servo

ACI

ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.

Additional working lights, LED

Additional working lights, LED, set of 3

Air conditioning for cabin

Air conditioning system from the roof of the cabin, with adjustable fan speed and electronic temperature control. Wide air outlets create a very comfortable ventilation system inside the cabin.

Attachment coupling plate for rear mounting

It is used to assemble attachments on the rear of the machine.

Automatic locking plate

On the automatic attachment plate the locking pins move hydraulically and are operated from cockpit.
This way the driver can stay on the seat when coupling and disconnecting non-hydraulic attachments.

Aux hydraulic outlets

Additional hydraulic outlets (front and/or rear).

Backup warning beeper

It help keep everyone safer during MultiOne machine operation.

Beacon light

Beacon light ensures more visibility and safety.

Boom with self levelling

Boom with self levelling keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.

Cruise Control

The cruise control is a great feature of OneDrive, as all attachments that require constant speed are now very easy to run: just set the working speed and the OneDrive will do the job for you.

Constant speed will give perfect results on the job site with a variety of attachments. The Cruise Control is activated by the joystick.

DBS (Dynamic Block System)

It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.

Diff Lock

Differential Lock

Driver area cover

Covers the machine interior, protects against rain, snow, etc.

Electronic Throttle Control

ETC – Electronic Throttle Control

Engine block heater

It is an ideal device for cold temperatures.
The system keeps the engine at an optimal temperature for easy starting with very cold climates.

Ergonomic heated seat

Ideal for cold climates, it significantly increases the comfort of the machine.

Ergonomic seat

It significantly increases the comfort of the machine.

Ergonomic seat with adjustable position

Ergonomic seat with adjustable position assures high comfort for the operator.

Fast charging station

• Suitable for EZ 5 and EZ 8
• Quick charge. 1 hour charging:

– EZ 5 – 60% charge (with 95A Fast Charging Station)
– EZ 8 – 50% charge (with 160A Fast Charging Station)

• CAN bus communication for lithium will ensure efficient and fast charging
• Peak Efficiency: 93%
• LCD display
• Forced air-cooling
• MultiOne coupling plate

Floating boom valve

It allows the mounted attachments to follow the contours of the land perfectly. Ideal for applications in agriculture and in the care of the green areas.

Fully enclosed cab (glass)

This is the best insulation system for the driver to protect him from cold, wind, rain, and snow.
Easy access thanks to the large door and the compass glass opening.

Heating system

Three-way heating with adjustable air flows and temperature.

HI-Flow

Additional pump that increases the outlets oil flow.

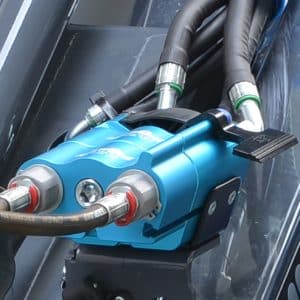

Hydraulic multiconnector

It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.

Hydraulic oil cooler

System for cooling the hydraulic circuit oil

Integrated rear weight

Integrated backweights are used to increase the lifting capacity of the machine. They are mounted inside the machine.

LCD graphic display with programmed service

LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)

LED road lights

LED road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.

LED Technology Plus:

• High service life
• Minimal energy consumption
• Wear-free and maintenance-free
• Higher effective visibility
• Dust and water-resistant
• Compact sizes
• Rapid response times

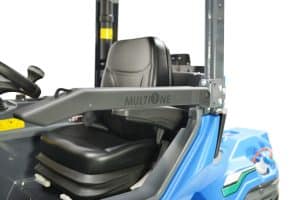

Left protection bar for operator

A side-protection bar that has been certified and awarded as a techincal safety innovating system. It is placed on the left side of the machine to protect the operator from falling out of the vehicle. It can be locked and unlocked very quickly thanks to a special mechanism.

Li-ION battery

The Li-Po battery assures a long operating time.

Mechanical parking brake

Mechanical parking brake

Multi function joystick

The multi-function electronic joystick allows an easy and precise control of the boom and attachments.

Multi-disk parking brake

Multiple Disc Brakes spring loaded and hydraulically released.

Multiconnector to quick coupling 3 lines adapter

Adaptor for machines, in order to connect standard flat face single lines connections. Suggested for attachments equipped with hydraulic cylinders, not with hydraulic motors. The adaptor has 3 lines to fulfill the connections with any kind of attachments.

One Drive

OneDrive is a brand new transmission system with a performance output over 30% higher than standard circuit. The DBS and Torque Divider and the brand new MultiOne Cruise Control are integrated.

Radial Piston Wheel motor

High performance, high torque cam-lobe radial-piston hydraulic motors.

Rear bull bar

Rear bull bar.

Rear outlets

They are used to mount on the rear side attachments. The rear outlets are controlled by the control panel.

Rear side weights

Rear side weights are used to increase the lifting capacity of the machine. It’s possibile to mount them also with other rear weights mounted.
Two kit (80 kg per side, 160 kg total) can be mounted, screw is required.

Rear weights

Backweights are used to increase the lifting capacity of the machine. They are to be mounted on the rear of the machine.

Road Lights

Road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.

ROPS-FOPS Level I

The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.

Rubber Tracks

Track drive grant maximum stability & traction, with minimal ground damage and low ground bearing pressure. The large contact area under the tracks reduces pressure, minimises ground damage and avoids sinking into soft soil & creating ruts.

Self-levelling double-H telescopic boom

It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.

MultiOne’s telescopic boom:

• it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
• it has special anti-friction pads, which ensure operation, durability and lack of maintenance
• it assures an excellent front visibility at any time, even while moving and lifting
• thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.

Smart Cabin

The most competitive solution for the operator who wants to improve working conditions thanks to a light cabin which limits the discomfort created by weathering.

Smart charger

The smart charger is included in the machine, which enables charging from any domestic power outlet.

Snow chains

MultiOne snow chains improve traction on snow.

Tie down bracket on wheel hub

The tie down brackets mounted on wheel hub makes easier to tie down the machine on a trailer.

Torque divider

It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.

Trailer coupling

Rear tow hook with double connection: with tow ball (car type) or tow pin (agricultural type).

Twin motors Single-Endend Circuits

EZ machine is equipped with two electric motors: a motor for transmission and a motor for loader boom operation and auxiliary hydraulics.

Unbreakable Body Panels

The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.

Wheel spacer

Spacers are used to make the machine wider and increase its stability.
