7 SERIES

Power, Speed & Agility

Power 25 hp
Max Lifting Capacity 1380 kg – 3042 lbs
Lift height 2,90 m – 114 in
Find a DealerMore Info

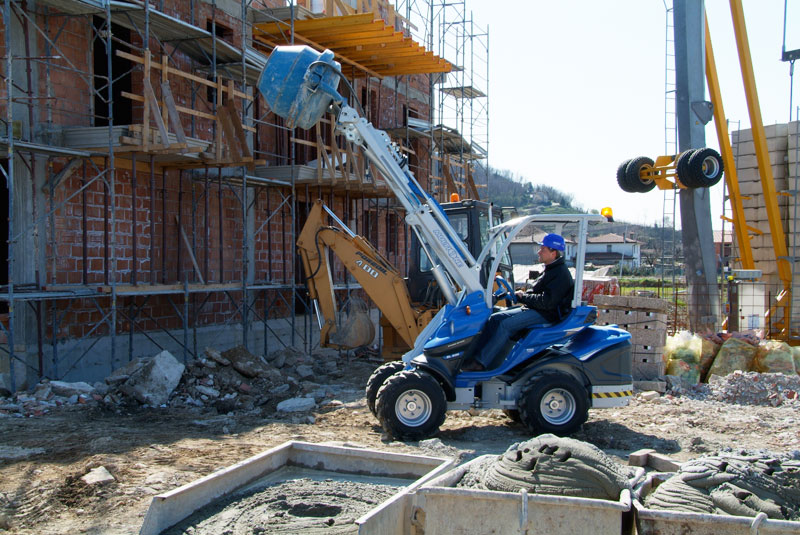

MultiOne 7 series is the winning combination of power, speed and agility.

The powerful engine and the direct drive radial piston motors gives great speed and pushing force.
The new frame and telescopic boom assure high lifting capacity and agility.

MultiOne 7 Series captures the imagination with its even more potent presence, the standout performance and innovative features. The MultiOne 7 Series builds naturally on the strengths of the most successful multifunctional mini loaders: multi functionality and performance.

MultOne 7 series articulated mini loaders are the ideal entry level machine aimed at professionals in the farming, agriculture or construction sectors looking for alternatives to manual labour or a skid steers.

7 Series Plus:

  • Advanced and modern frame design
  • Integrated backweights
  • Great lifting height and capacity

TECHNICAL DATA

Multione 7.2K Mini Articulated Loader Lift Height

EngineKubota D1305, 3 cyl – 1261 cc.
Emission StandardStage V and Tier 4 Final
Power (Iso Gross) / Torque25 HP / 85 Nm @ 1700 rpm
FuelDiesel
TransmissionHydrostatic
Drive speed (max)9 km/h (5.6 mph)
Aux. hydraulic oil flow40 l/min (10.5 GPM)
Max lifting height2,90 m (114 in)
Breakout force / 50 cm1700 kg (3748 lbs)
Turning radius: inside/outside825 / 2090 mm (32.5 / 82.3 in)
Standard tires (Tractor profile)23×10.50-12 ET-25
Weight1590 kg (3510 lbs)
Tipping load (w/backweights)1725 kg (3803 lbs)
Lifting capacity (straight and w/backweights)1380 kg (3042 lbs)
