NEW 5 SERIES

Compact & Versatile

Power 25 hp
Tipping load 1140 kg – 2513 lbs
Lift height 2,75 m – 108 in

Find a dealerMore Info

MultiOne 5 Series compact articulated mini loaders offer a winning combination of performance and low operating costs. No compromise between performance, power, economy, innovation, technology and design.

The telescopic boom combined with the compact size makes the 5 Series the right choice for anyone who needs boom outreach coupled with great agility in narrow spaces: from the DIY to the demanding professional.

The new 5.3 K model is equipped  with the Kubota D1305 – 3 cylinders – 1300 cc. engine. It meet the emission requirement for UE and US without hassle of electronic controls or any exhaust treatment.
The particular Multione setup make the engine deliver high torque at low revs giving many advantages to Multione hydraulic controls and circuits with a smooth, reactive and consistent power output.

The new configuration offers: 30% more torque  and  20% more flow output for the attachments.
This mean much more power when it is needed, a smooth and constant power delivery at low rpm and the best attachments performance.

5 Series Plus:

  • Telescopic boom
  • Compact dimensions
  • Low operating cost

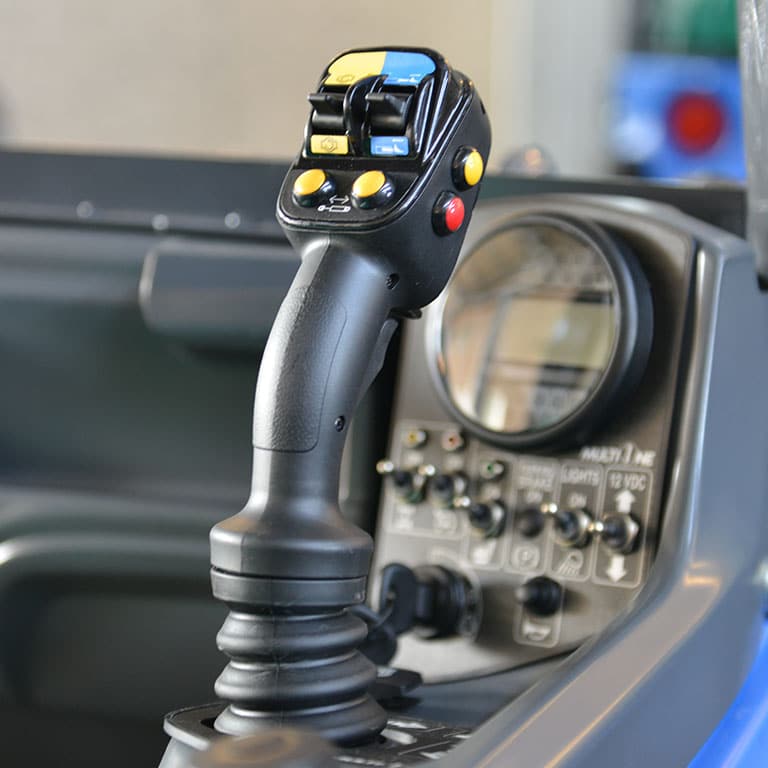

  • Multi function joystick (5.3K)
  • 50 l/min (13.2 GPM) output flow (5.3K)
  • Big Block – 1300 cc displacement – Kubota engine (5.3K)
  • Stage V and Tier 4 Final emission compliant
  • Low emission
  • Low noise
  • Big tires available
  • Very versatile

MODELS COMPARISON

METRIC/US-IMPERIAL
5.2_tabella_300x2705.2 Multione_5.3K5.3 K
Tipping load(*)  1020
kg
 1140
kg
Power 25
hp
25
hp
Torque  56 @ 2600 rpm
Nm
 85 @ 1700 rpm
Nm
Speed  14
km/h
 12,5
km/h
Flow rate  34
l/min
 50
l/min
Lift Height 2,75
m
2,75
m
Pushing Force (c) 900
kgf
900
kgf
Weight  960
kg
 1050
kg
(*) It’s the maximum load that can be lifted just off the ground when the machine is straight, with backweights and on firm, level ground. Boom not extended. Weight of attachment included, the tipping load is the value indicated minus the weight of the attachment.
5.2_tabella_300x2705.2 Multione_5.3K_300x2705.3K
Tipping load(*)  2249
lbs
 2513
lbs
Power 25
hp
25
hp
Torque 56 @ 2600 rpm
Nm
85 @ 1700 rpm
Nm
Speed  8.7
mph
 7.7
mph
Flow rate  9
GPM
 13.2
GPM
Lift Height 108
in
108
in
Pushing Force (c) 900
kp
900
kp
Weight  2116
lbs
 2315
lbs
(*) It’s the maximum load that can be lifted just off the ground when the machine is straight, with backweights and on firm, level ground. Boom not extended. Weight of attachment included, the tipping load is the value indicated minus the weight of the attachment.

TECHNICAL DATA

5.3K Multione Mini Articulated Loader

EngineKUBOTA D1305
Power (Iso Gross)25 HP
Torque85 Nm @ 1700 rpm
FuelDiesel
TransmissionHydrostatic
Drive speed (max)12,5 km/h (7.8 mph)
Aux. hydraulic oil flow50 l/min (13.2 gal/min)
Max lifting height2,75 m (108 in)
Breakout force / 50 cm800 kg (1764 lbs)
Turning radius: inside/outside800 / 2000 mm (31.5 / 78.7 in)
Standard tires (Tractor profile)23×10.50-12
Weight1050 kg (2315 lbs)
Tipping load(w/backweights)1140 kg (2513 lbs)
Lifting capacity (straight and w/backweights)900 kg (1948 lbs)
Lifting capacity (fully articulated and w/backweights)740 kg (1631 lbs)
CodeC977038
